Traxxas TRX-4 Deep-Terrain Traxx Trail RC 4×4 Crawler RTR W/Clipless Body

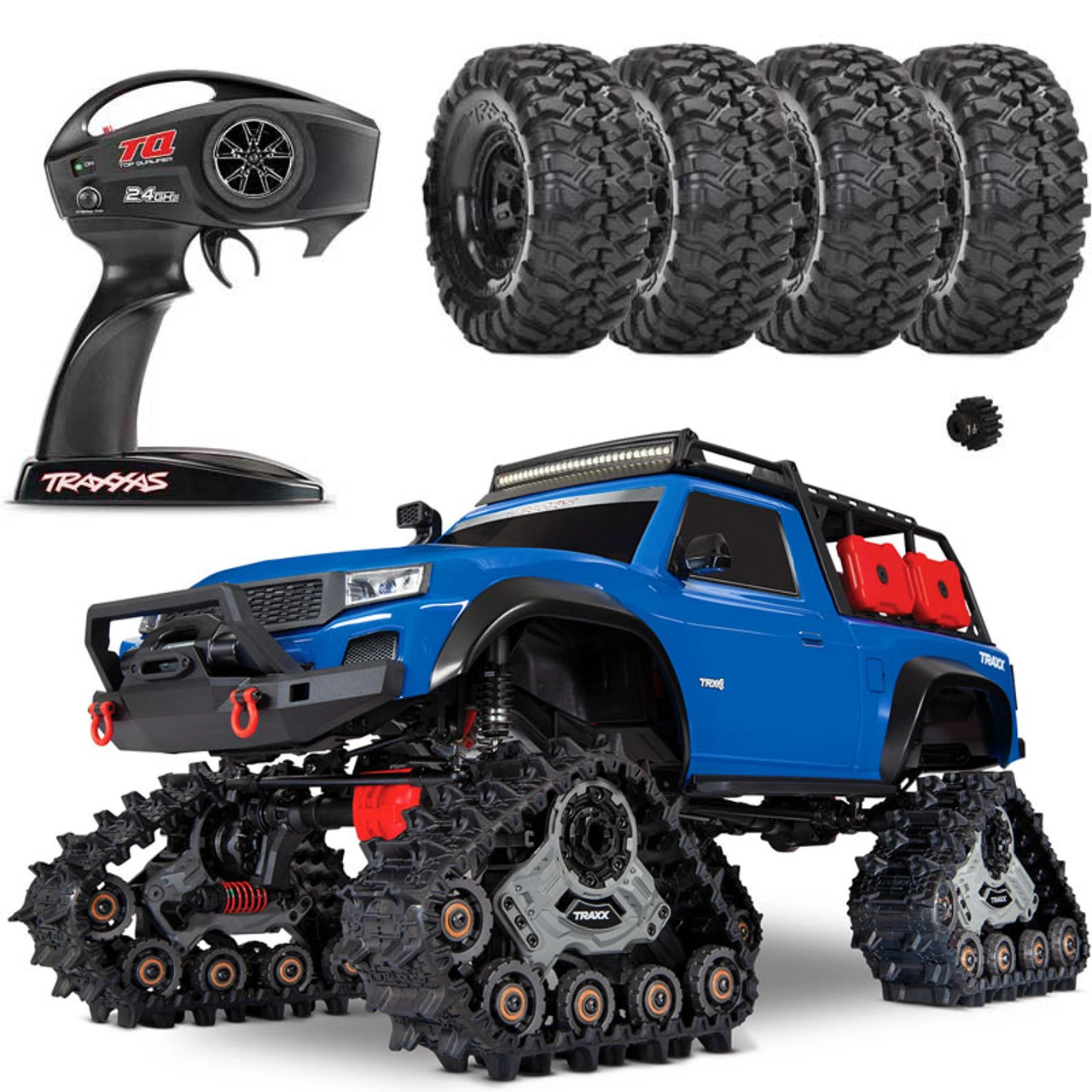

INCLUDED BONUS ITEMS – INCLUDES 4 FREE TIRES FOR ULTRA-VERSATILITY!

              ALSO INCLUDED- 16-Tooth Pinion Gear and Installation Hardware

This is the Traxxas TRX-4 Scale and Trail RC Crawler with the Traxx off-road track system, now with deep terrain tracks! Fully-Assembled with Waterproof Electronics and Ready-To-Drive, with TQ 2.4GHz 2-Channel Radio System, XL-5 HV Speed Control, Clipless Painted Body, Scale Accessories, and LED Lighting.

Requires: Battery and charger – see recommended items at bottom

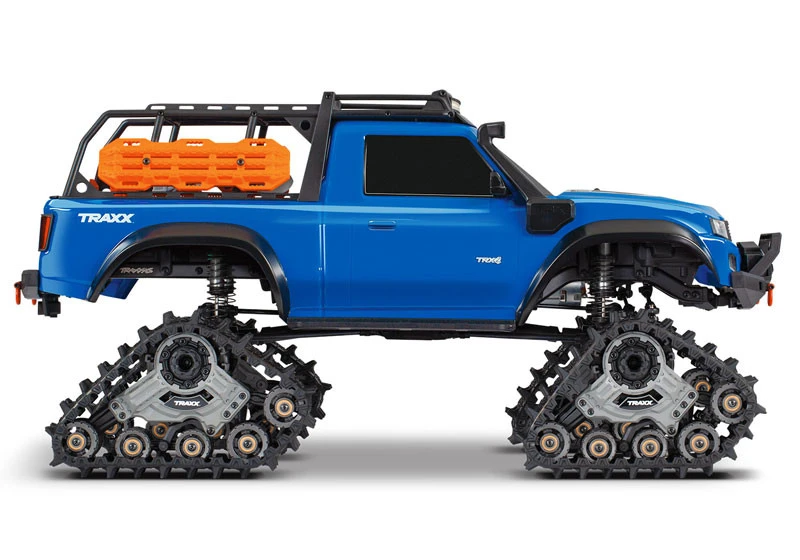

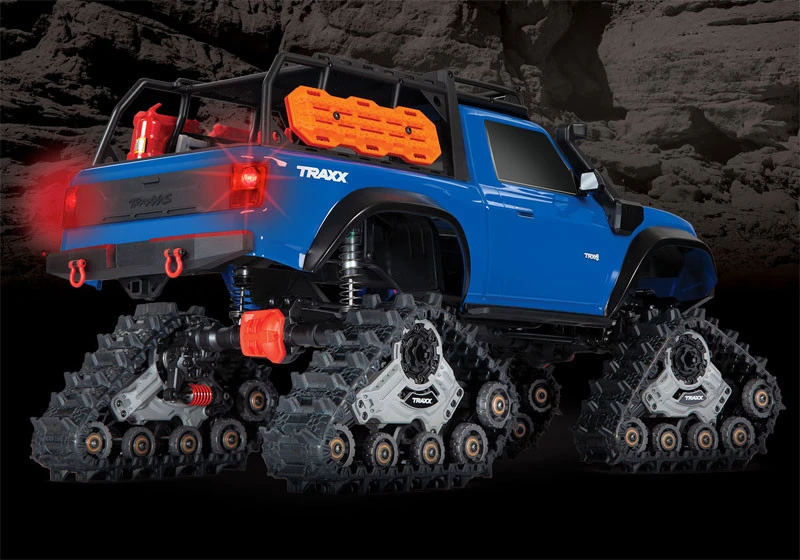

TRX-4 EQUIPPED WITH TRAXX
Hit the trail fully outfitted for fun and adventure with the TRX-4 equipped with Traxx. Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model. Plus it’s factory-equipped with powerful lighting and a full array of performance parts and scale detail accessories. The fully-painted body with clear windows enhances the realism.

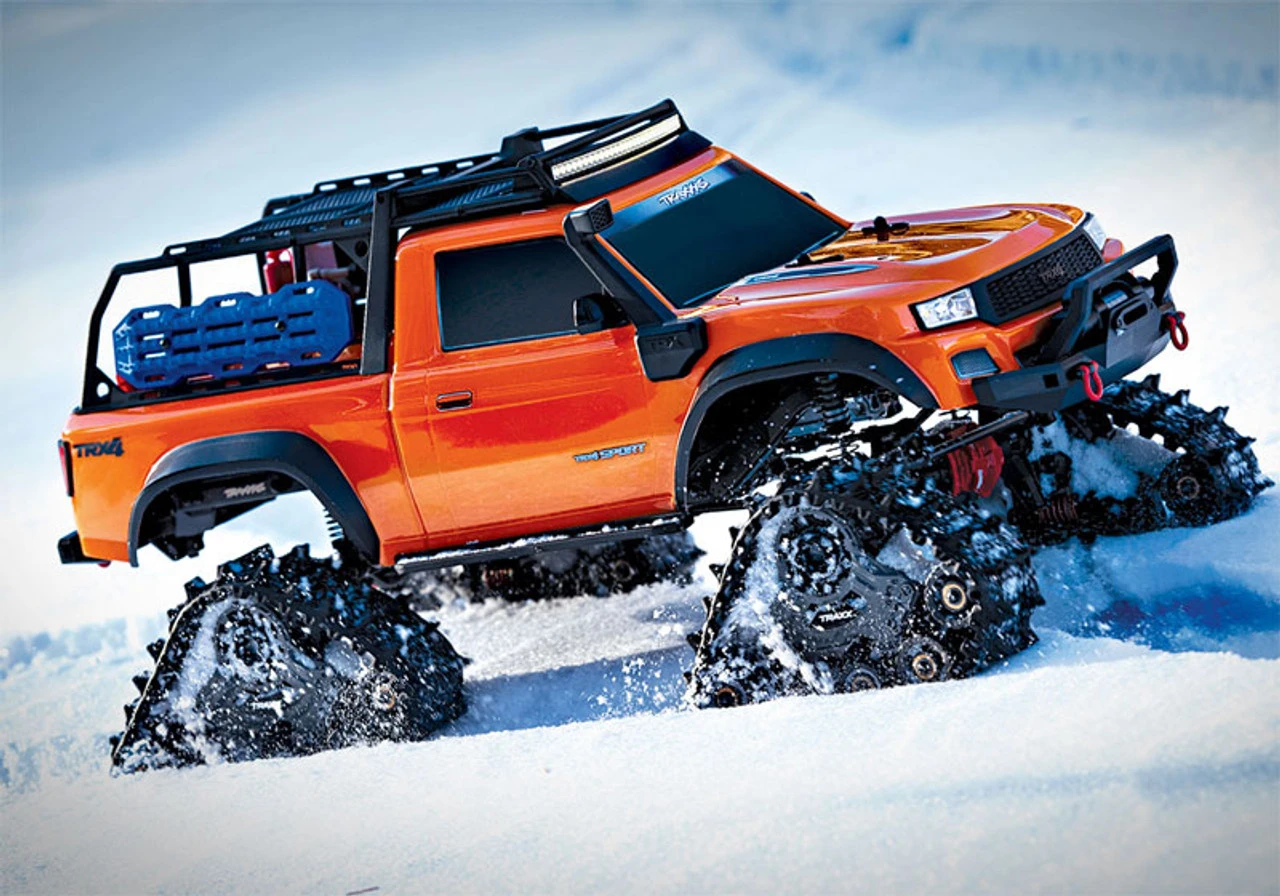

MAXIMUM TRACTION

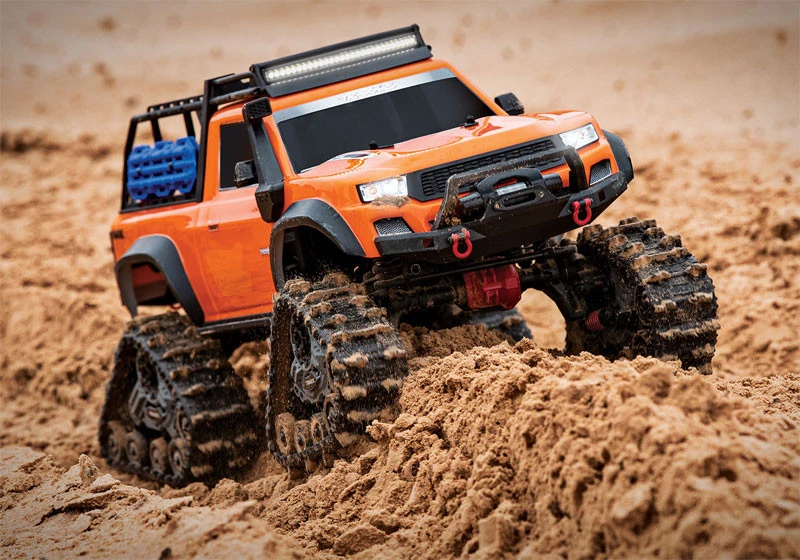

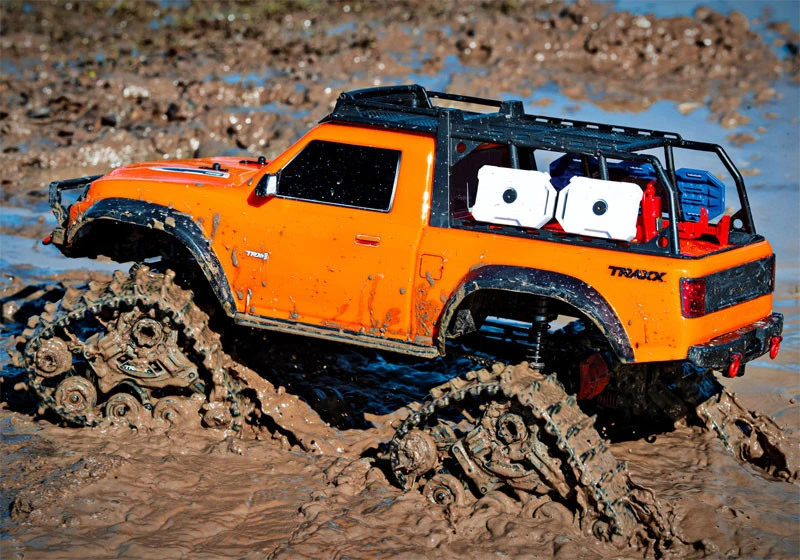

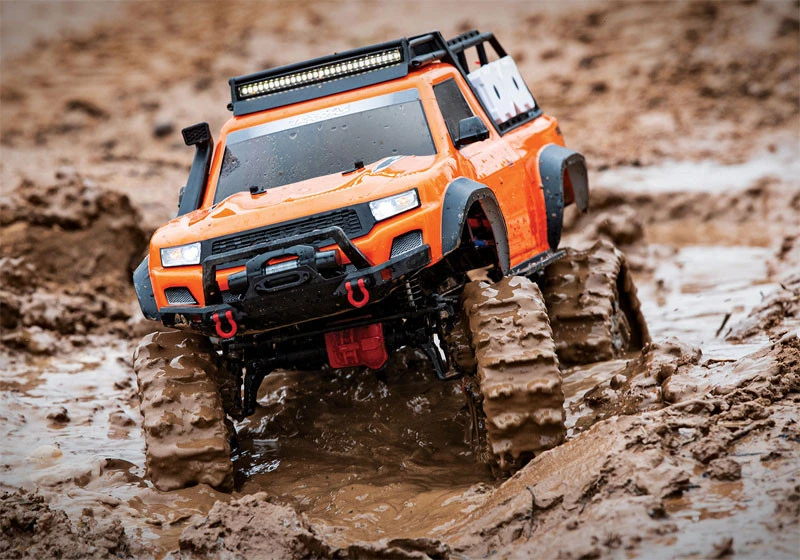

Outfitted with Traxx, TRX-4 transforms into an all-terrain monster. The enormous contact patch and grippy treads shrug off the deepest mud and float across sand. Traxx increases ground clearance and approach angles to let you straddle even larger obstacles and climb steeper grades without breaking a sweat.

CLIPLESS BODY MOUNTING
TRX-4s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.

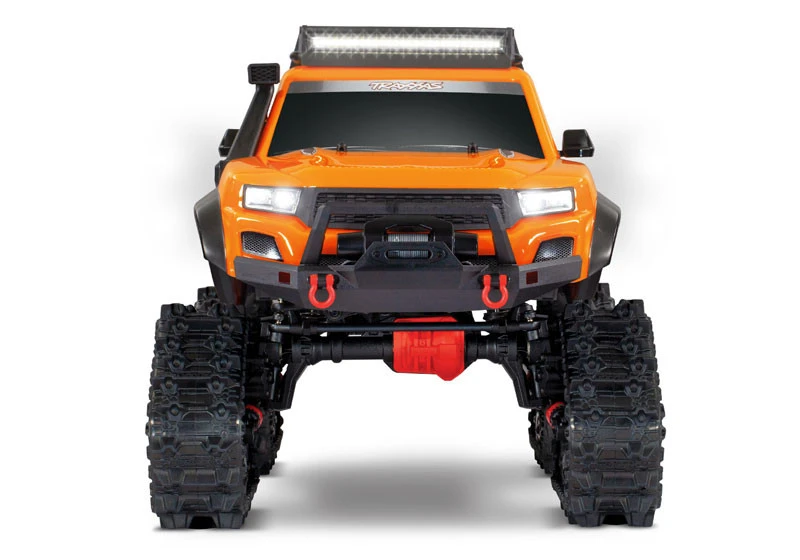

LED LIGHT KIT

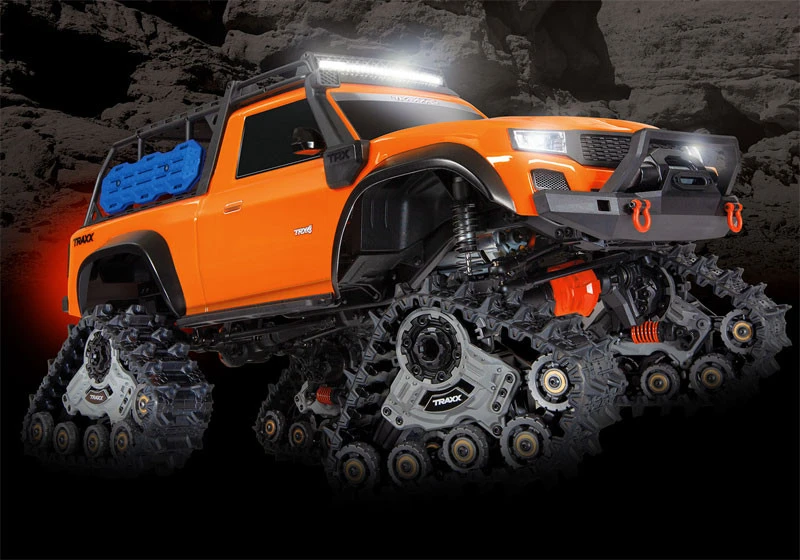

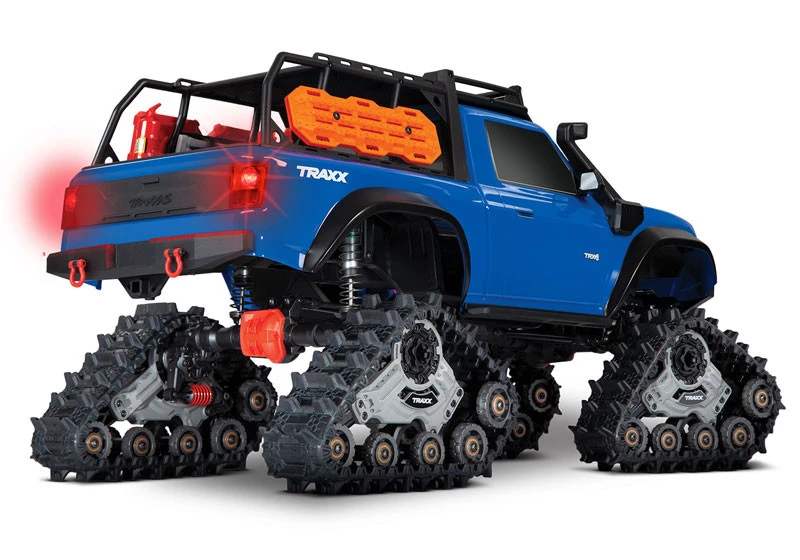

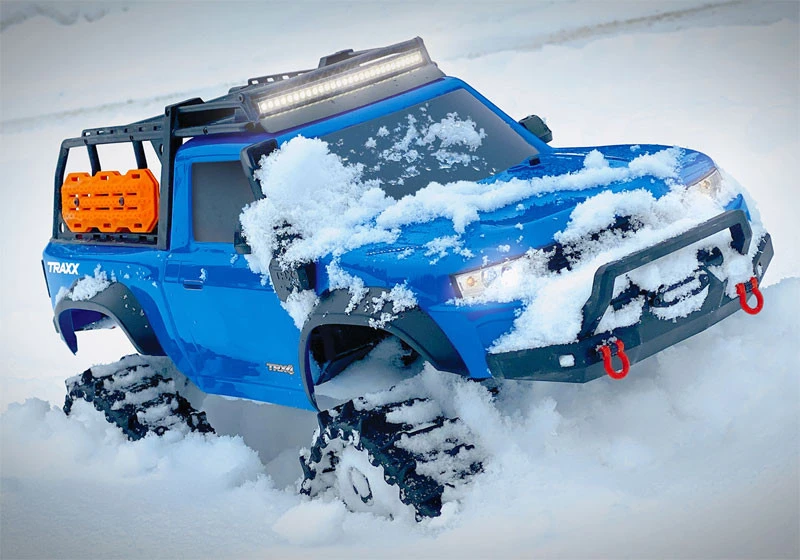

The pre-installed LED light kit features headlights, taillights, and a wide 28-LED rack-mounted light bar. Fully waterproof for all-weather adventure, the LED light kit keeps the fun going long after the sun sets. The injection molded grill and tailgate feature integrated lenses for additional scale detail and rugged functionality.

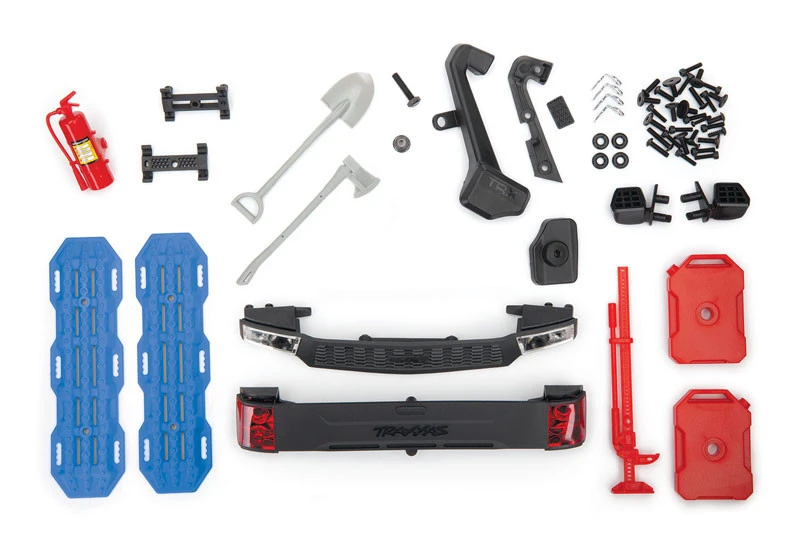

SCALE ACCESSORIES
TRX-4 with Traxx includes an entire complement of scale accessories. Along with a tough and functional Expedition Rack, the truck comes outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and canisters for extreme scale detail. Inner fenders give TRX-4 a realistic appearance for maximum impact.

Features

• Clipless Pickup Truck Body
  • Clipless body mounting
  • Low profile bumpers for increased clearance
  • Red differential covers and D-rings
  • Clear windows
• Scale Accessories
  • Rugged Expedition Rack with detailed accessories
  • Tough inner fenders
  • Injection-molded snorkel, side mirrors, and grilles

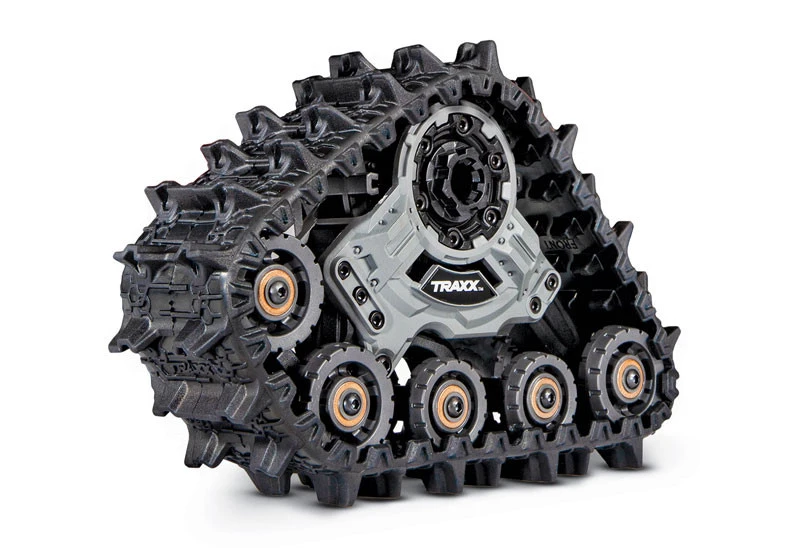

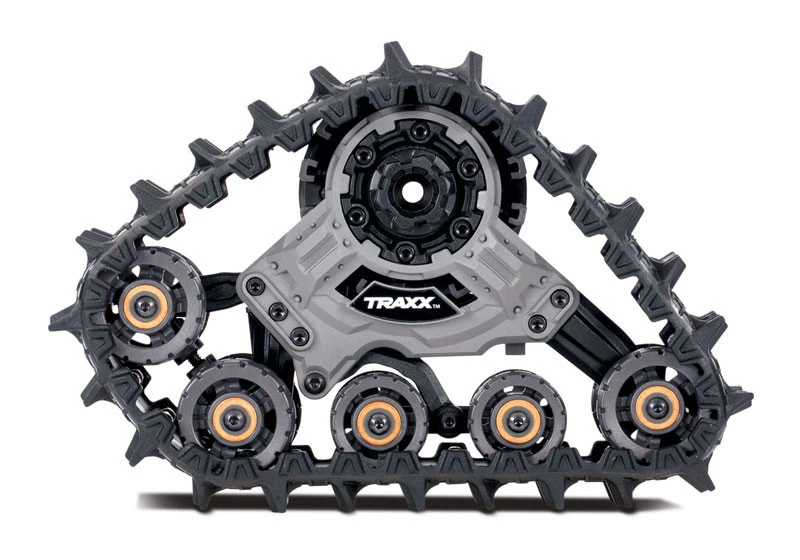

• All-Terrain Traxx
  • Virtually unstoppable traction on practically any terrain
  • Oil-filled coilover dampers to control rotational movement
  • Suspended road wheels allow treads to conform to irregular surfaces
  • Specially designed one-piece rubber treads resist de-tracking
  • Longer rear Traxx drive units for steep climbing stability
  • Designed for all-weather fun
    • Sealed bearings on drive wheels
    • Low-maintenance self-lubricating bushings on guide wheels
• LED Light Kit
  • Sealed waterproof design
  • Color-coded power distribution block for easy and secure connections
  • Traxxas LED lighting module
    • Regulated to provide consistent and reliable power output
    • Eliminates overheating, glitching, and other electronics issues
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan 21-T reverse rotation motor with internal cooling fan
  • Precise preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Rigid Steel Frame
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Spool-locked front and rear differentials
  • Steel gear transfer case
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Single-speed with steel gears
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2270 high torque digital servo
    • 236 oz-in torque
    • Waterproof case
    • Full metal gears
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• TQ 2.4 GHz 2-channel transmitter
• Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating

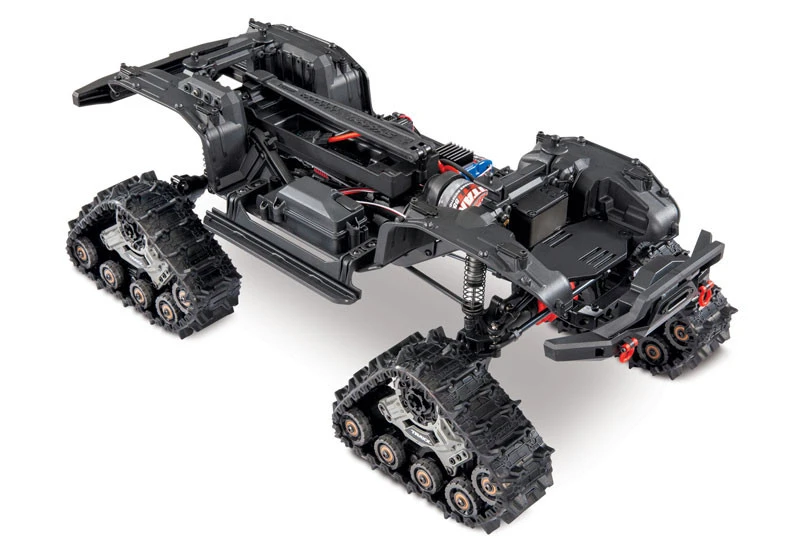

Rugged TRX-4 Chassis Design
The TRX-4 tramples the status quo with extreme versatility and off-road capability. Performance and technology combine in a revolutionary chassis that looks as good as it performs.

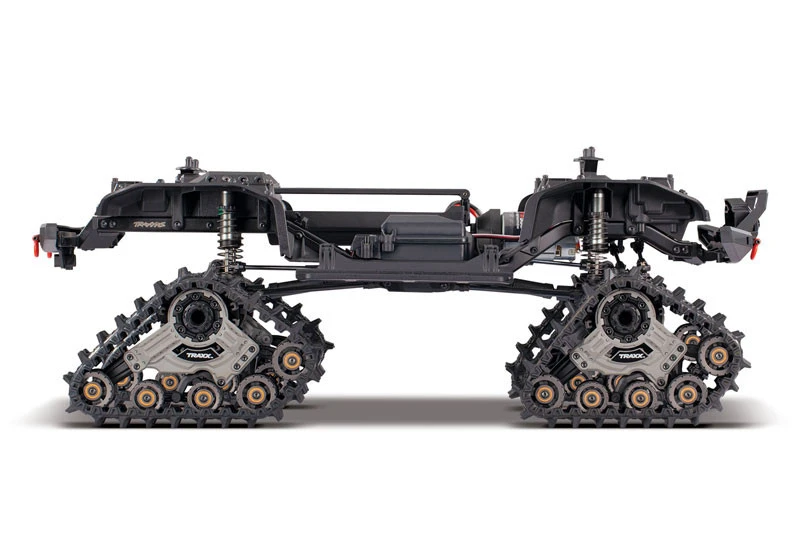

Improved Ground Clearance

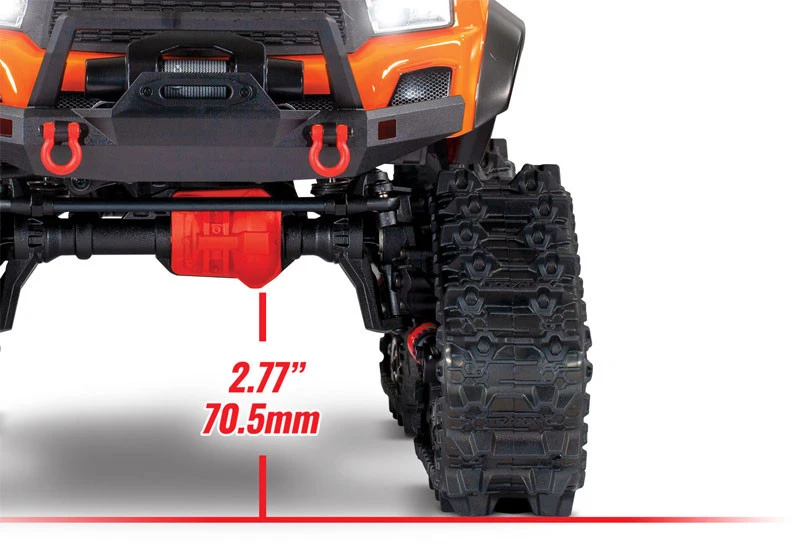

Traxx add over 16 mm of ground clearance to the TRX-4. Functioning similar to portal weights, Traxx position weight down low for improved stability. The Traxx Edition also has an effectively longer wheelbase that increases the breakover angle for additional stability while climbing up steep grades.

Torque Twist Eliminated
The portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan 550 motor’s torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.

Locked Differentials
When negotiating a slick rock face or powering through a mud bog, traction is king. The TRX-4 comes locked and loaded with differential spools in the front and rear for ultimate grip when you need it most. Locked differentials improve flotation over soft surfaces such as sand by keeping your tracks travelling at the same speed so that a slower moving track does not dig down into the surface.

Single Speed Transmission
The single speed transmission in the Traxx Edition is already set up for most driving conditions with Traxx. Steel gears provide Traxxas-Tough durability and virtually maintenance-free operation.

Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone. The thicker steel combined with the cross members provide a difference you can feel on the trails when navigating punishing, twisting terrain.

GTS Aluminum Shocks
Oil-filled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded aluminum shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.

3s Power System
The XL-5 HV electronic speed control brings 3s LiPo capability for strong efficient running. The powerful 21T Titan motor provides torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides extended run time when using a Traxxas 3s 5000mAh iD LiPo battery pack!

TQ Radio System
Comfortable and precise, the easy-to-use TQ radio system features the reliability you expect from Traxxas. The TQ’s advanced programming provides long-range control with smooth, glitch-free performance.

Waterproof Electronics
The TRX-4 is fully waterproof, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

*Click to See the Full Line of TRX-4 Parts/Accessories

Specifications
Length: 21.93 inches (557 mm)
Front Track: 10.48 inches (266 mm)
Rear Track: 10.48 inches (266 mm)
Ground Clearance: 3.54 inches (90 mm)
Weight: 8.71 pounds (3.95 kg)
Height: 10.29 inches (261 mm)
Wheelbase: 12.28 inches (312 mm)
Approach Angle: 76°
Departure Angle: 76°
Breakover Angle: 81°
Front Shock Length: 3.54 inches (90 mm)
Rear Shock Length: 3.54 inches (90 mm)
Battery Tray: 159 L x 47 W x 23/26 mm H
Speed Control: XL-5 HV
Motor (electric): 21T reverse rotation
Transmission: Single speed
Gear Pitch: 32 pitch
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft driven 4WD
Steering: Chassis mounted servo
Servo: 2270 high-torque metal gear
Transmitter: TQ 2.4 GHz 2-Channel Transmitter
Receiver: 6519
Skill Level: 1

Requires
(4) AA batteries for the transmitter
6-7-cell NiMH flat pack or 2-3S LiPo battery
Battery Charger
