Traxxas TRX-4 4WD Crawler Kit W/2S Batt & Charger

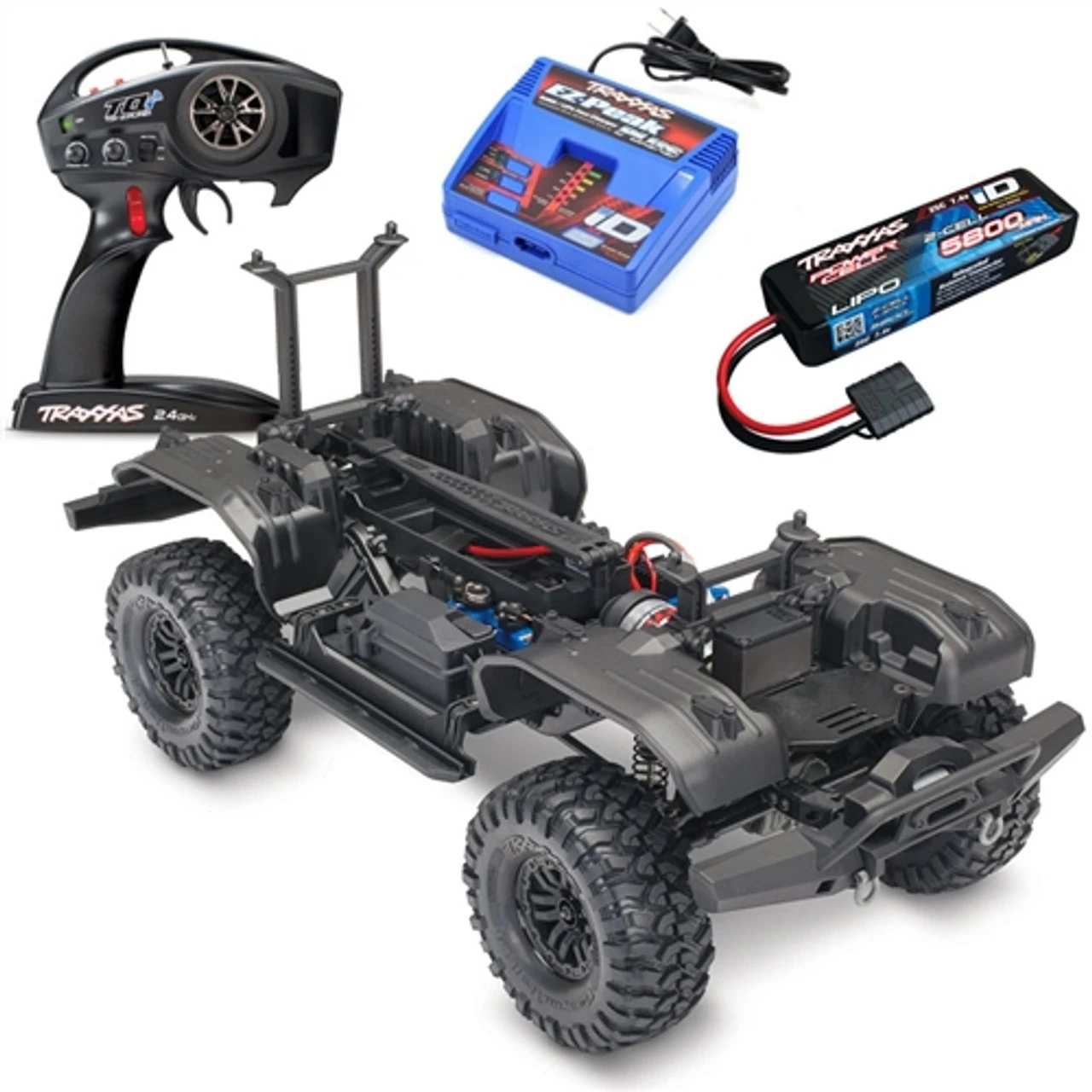

This is the Traxxas TRX-4 4WD Crawler Kit Chassis COMBO with 2S 5800mAh LiPo Battery, EZ Peak Plus ID Charger, TQi 2.4GHz 4-Channel Radio System and Electronics. The TRX-4 Chassis Kit arrives ready to assemble with a full-color instruction guide, TQi 4-channel 2.4GHz radio system, and complete waterproof electronics including servos, XL-5 HV ESC, and Titan 21T motor. Key parts like shocks and suspension links come pre-assembled to make building easy and fun. Choose your own body to complete your custom ride. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun.

TRX-4 Technology and Innovation-Now Available as a Kit!

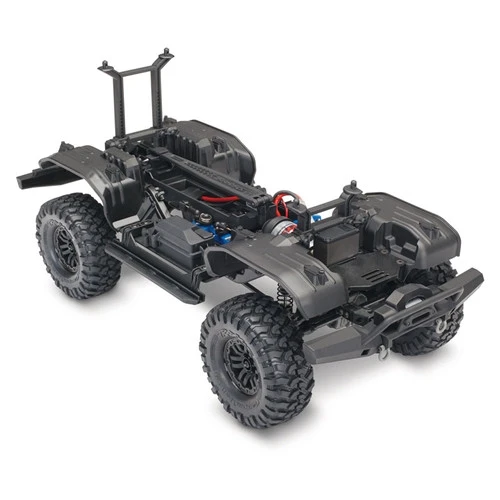

The Traxxas TRX-4 Scale and Trail Crawler set the standard for off-road versatility with its radical design and rugged durability. The new TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

Easy to Follow Assembly Instructions
The TRX-4 Chassis Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Chassis Kit.

Features

• Easy to follow full-color assembly manual
  • True-to-scale part illustrations and ruler charts
  • Helpful assembly tips and clear illustrations
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode – forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3S LiPo (7.4-11.1V)
  • Two stage low voltage protection (LVD)
• Powerful Titan 21T reverse rotation motor
  • Internal cooling fan
  • Precise, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance (3.14”)
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Rigid Steel Frame
  • 1.5mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
  • Adjustable rear shock tower positions
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Innovative Battery Compartments
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary battery mount over front axle for forward weight bias
• Two speed high/low range transmission with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45 degree steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front – 3 link with panhard
  • Rear – Triangulated 4 link
  • Pre-assembled heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends
• Pre-assembled aluminum GTS Shocks
  • Coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
  • Shock oil included in kit
• Wheels and Tires
  • 1.9” Canyon Trail tires with trail-tuned foam inserts
  • Tough black scale wheels
  • Trail tuned S1 rubber compound
  • 12mm steel hex
  • Tire glue required
• TQi 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control
• Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

The Power of Portals
Build your own game-changing TRX-4 portal axles with the TRX-4 Chassis Kit. These innovative axles lift the chassis at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles (and not get stuck) your tires would need to be over an inch taller than the TRX-4’s. Straddling boulders with ease, the TRX-4 chassis takes the path less traveled and leaves everything else behind.

Torque Twist Eliminated
Total axle gear reduction with portals is over twice non-portal designs, virtually eliminating torque twist. Titan 550 motor torque is translated into straight, powerful, forward motion.

Canyon Trail 1.9 Tires
The 1.9” Canyon Trail tires and tuned foam inserts are super-soft and grippy to deliver superior bite on rocky surfaces with convincing scale realism. A 12mm steel hex drives the wheels.

Pre-Assembled Aluminum GTS Shocks
Pre-assembled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded shock bodies, an O-ring cap seal, and dual X-ring shaft seals. Just add the included shock oil.

Scale Detail
The rugged bumpers provide clearance and protection and are equipped with recovery D-rings. The front bumper is designed to be compatible with many popular off-road accessories.

T-Lock Remote Locking Differentials
Traxxas gives you the freedom and versatility to lock and unlock both of the patented front and rear T-Lock differentials to suit your driving needs, all controlled remotely from your transmitter.

Hi/Low Range Transmission
When the going gets tough, use your transmitter to shift into low range for incredible 4-wheel drive pulling torque. Shift into high range for blasting down the trail.

Metal Gear Digital Servo
A new full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough situations.

Extreme Capability
Steep approach angles front and rear allow the TRX-4 Scale and Trail Crawler to tackle big obstacles head on. The front motor design biases weight forward for superior climbing ability.

Improved Geometry
Portal axles raise the axle link mounts, center driveshaft, steering drag link, and the tie rod up and out of harm’s way. Center ground clearance is increased while critical driveshaft and suspension link angles are reduced.

3s Power System
The new XL-5 HV electronic speed control brings 3S LiPo capability and new profiles. A new Trail profile facilitates smooth driving for most of your adventures, while a new Crawl profile introduces hill hold and instant reverse for extremely technical courses. Long run times, up to 2 hours, are possible with a Traxxas 3s 5000mAh iD LiPo battery pack! (Battery not included)

Tough, Pre-Assembled Suspension Links
Thick 5mm diameter steel links feature tough, fully-captured heavy-duty rod ends with steel hollow balls for exceptional strength and durability. This is one rig that won’t strand you on the trail with a broken suspension link.

Waterproof
The TRX-4 Scale and Trail Crawler is fully waterproof. Only Traxxas patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.

Inner Fenders
Detailed inner fenders integrate with the floor pans and shock towers, keeping rocks, mud, and twigs out of the chassis. The inner fenders are also equipped to install our optional LED rock light kit (sold separately).

Cruise Control
Set your speed using the transmitter and then fine-tune it with the Multi-Function knob to precisely match the pace of your caravan of trail explorers. The TRX-4 is your companion for hours of driving fun and exploration.

Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone. The elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

*Click to See the Full Line of TRX-4 Parts/Accessories

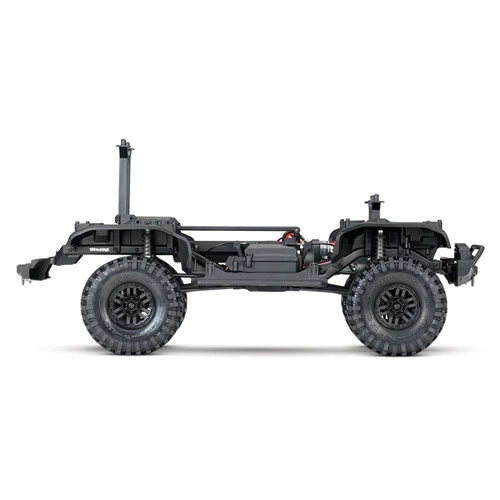

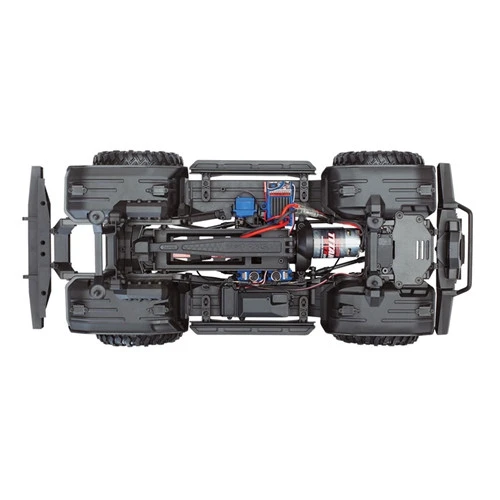

TRX-4 Chassis Kit (#82016-4) Specifications

Length: 20.57 inches (523mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 10.47 inches (266mm)
Wheelbase: 12.28 inches (312mm)
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Wheel Hex: 12mm
Speed Control: XL-5 HV
Motor (electric): Titan 21T Reverse Rotation
Differential Type: 4 Gear, Remote Locking
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Chassis Mounted 2075X Metal Gear Servo
Radio System: TQi 2.4 GHz 4-Channel Transmitter with #6533 Receiver
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H

Includes

Unassembled TRX-4 Chassis Kit
TQi 2.4GHz 4-channel radio system with 4 servos
XL-5 HV waterproof ESC
Titan 21T 550 motor
Full-color step-by-step assembly manual
2S 7.4V 5800mAh LiPo Battery
EZ Peak Plus ID Charger

Requires

Body
Assembly tools & supplies
