Traxxas TRX-4 1979 Chevrolet K10 Truck 4WD RTR Rock Crawler W/3S LiPo COMBO

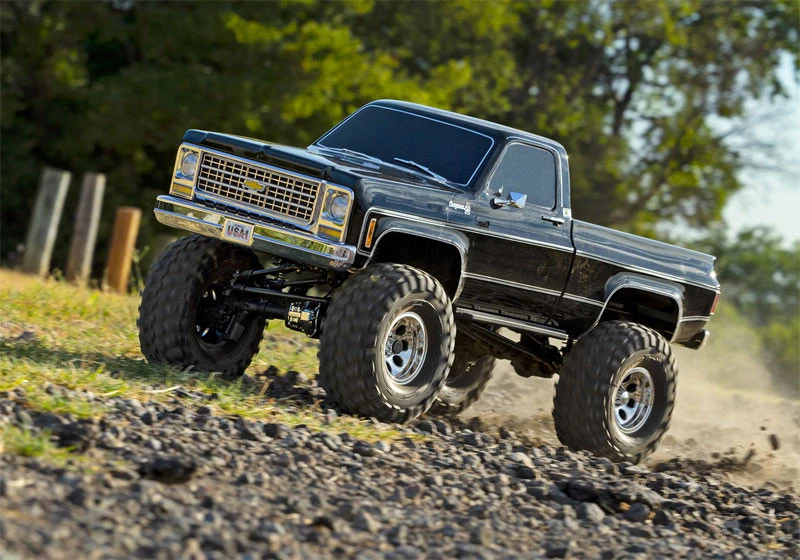

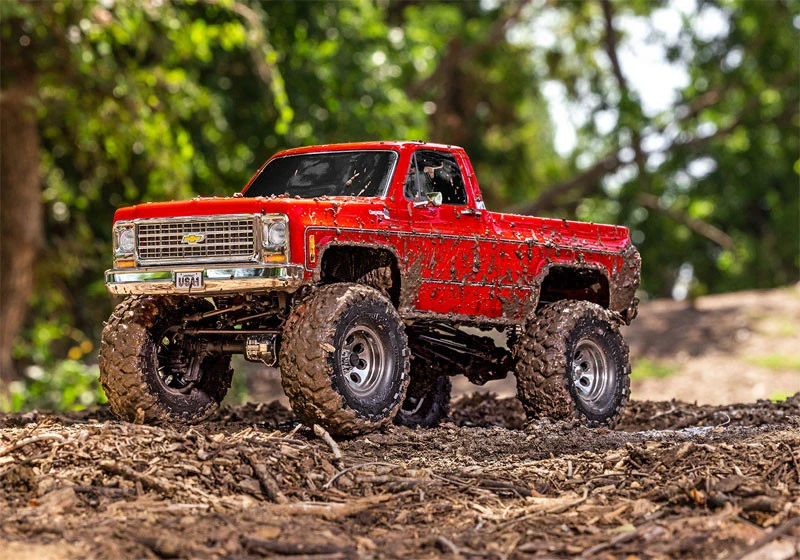

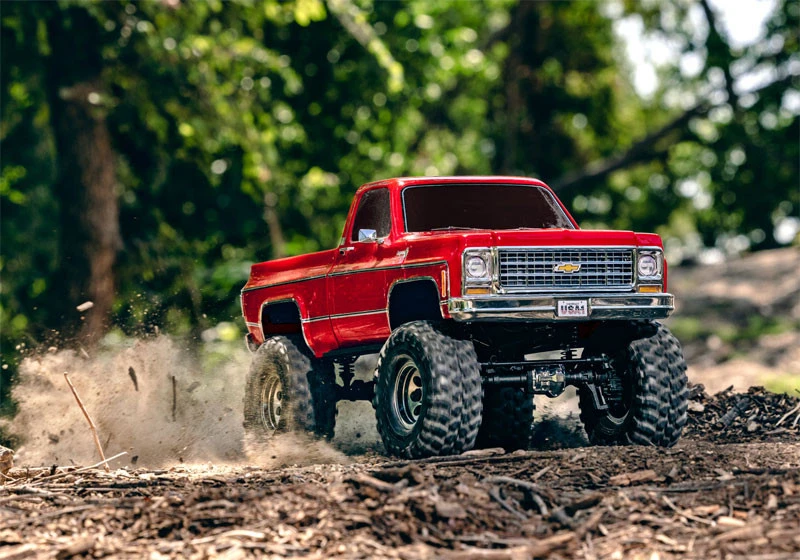

This is the Traxxas TRX-4 Scale and Trail Crawler with 1979 Chevrolet K10 Truck Body and Long Arm Lift Kit 1/10 Scale 4WD Electric Truck. Ready-to-Drive with TQi Traxxas Link Enabled 2.4GHz Radio System, XL-5 HV ESC (fwd/rev), and Titan 550 motor.

TRX-4 ULTIMATE COMBO PACKAGE INCLUDES
Traxxas TRX-4 1979 Chevrolet K10 Scale Crawler
Traxxas EZ-Peak ID 4-Amp Charger
Traxxas 3S 4000mAh LiPo Battery

The ULTIMATE combo for extended run-times and maximum performance!

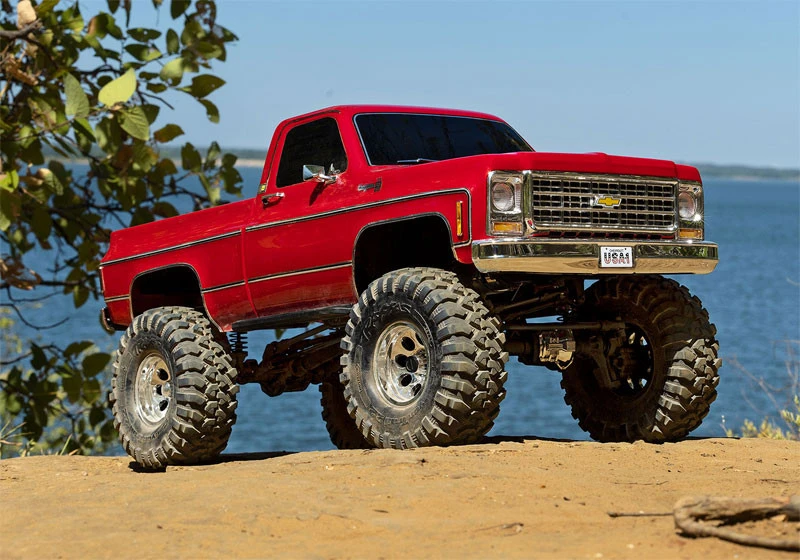

LIFTED OFF-ROAD ADVENTURE
Traxxas elevates scale adventure with the lifted TRX-4 Chevrolet K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough durability.

K10 High Trail Edition Features

• Officially Licensed 1979 Chevrolet K10 Pickup Body
  • Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers

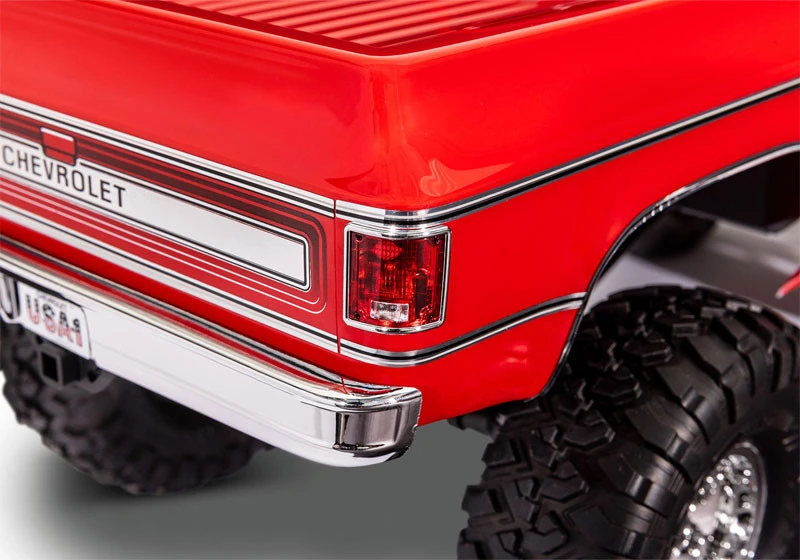

  • LED-ready headlights and tail lights
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
• Clipless Body mounting
  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
    • Body details mount directly to internal frame
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake / no reverse
    • Training Mode – 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode – forward / instant reverse – no neutral with 100% hill holding brake
  • Traxxas EZ-Set one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
  • Two stage low voltage protection (LVD)
• Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Factory-Installed Long Arm Lift Kit
  • Increases ground clearance over 1”
  • Maintains precise steering geometry
  • Accommodates oversize 2.2” wheels and tires
• Extended Wheelbase
  • Increases ground clearance over 1”
  • Long 336 mm wheelbase for improved stability
  • Full-length 1.5 mm steel frame rails
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45-degree steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front – 3 link with panhard
  • Rear – Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5mm diameter steel link rods with 4mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Extra-long aluminum bodies for greater articulation
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Oversize Wheels and Tires
  • 2.2” 8-hole chrome mag wheels with hub inserts
  • Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12mm steel hex
• Transmitter
  • TQi 2.4GHz 4-channel transmitter
  • Traxxas Link enabled
  • Telemetry ready #6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13ms frame rate and near-zero latency for responsive control
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

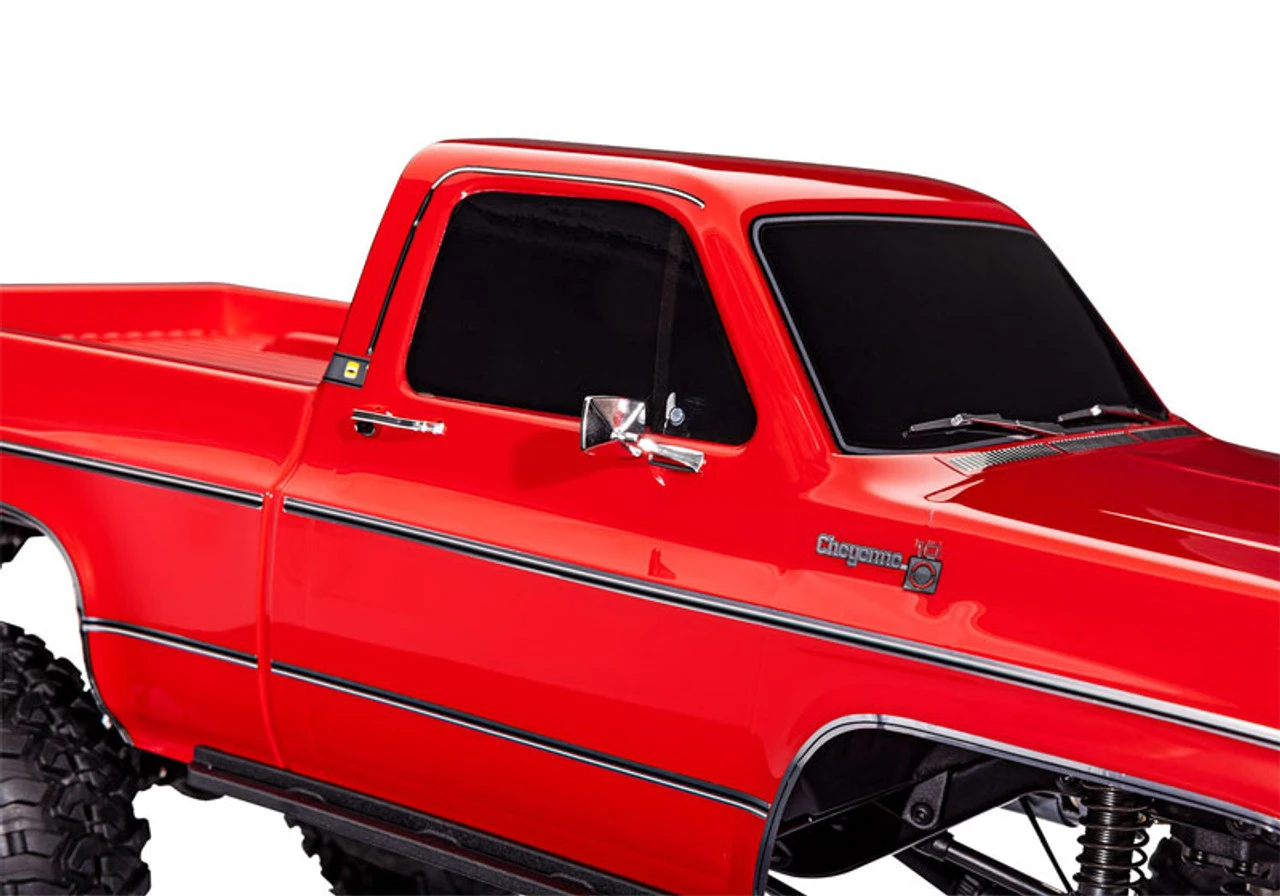

Molded Scale Details
K10 High Trail Edition features beautiful precision-molded details for a whole new level of scale realism. The authentic chrome wheels, side mirrors, and windshield wipers provide the perfect scale touches.

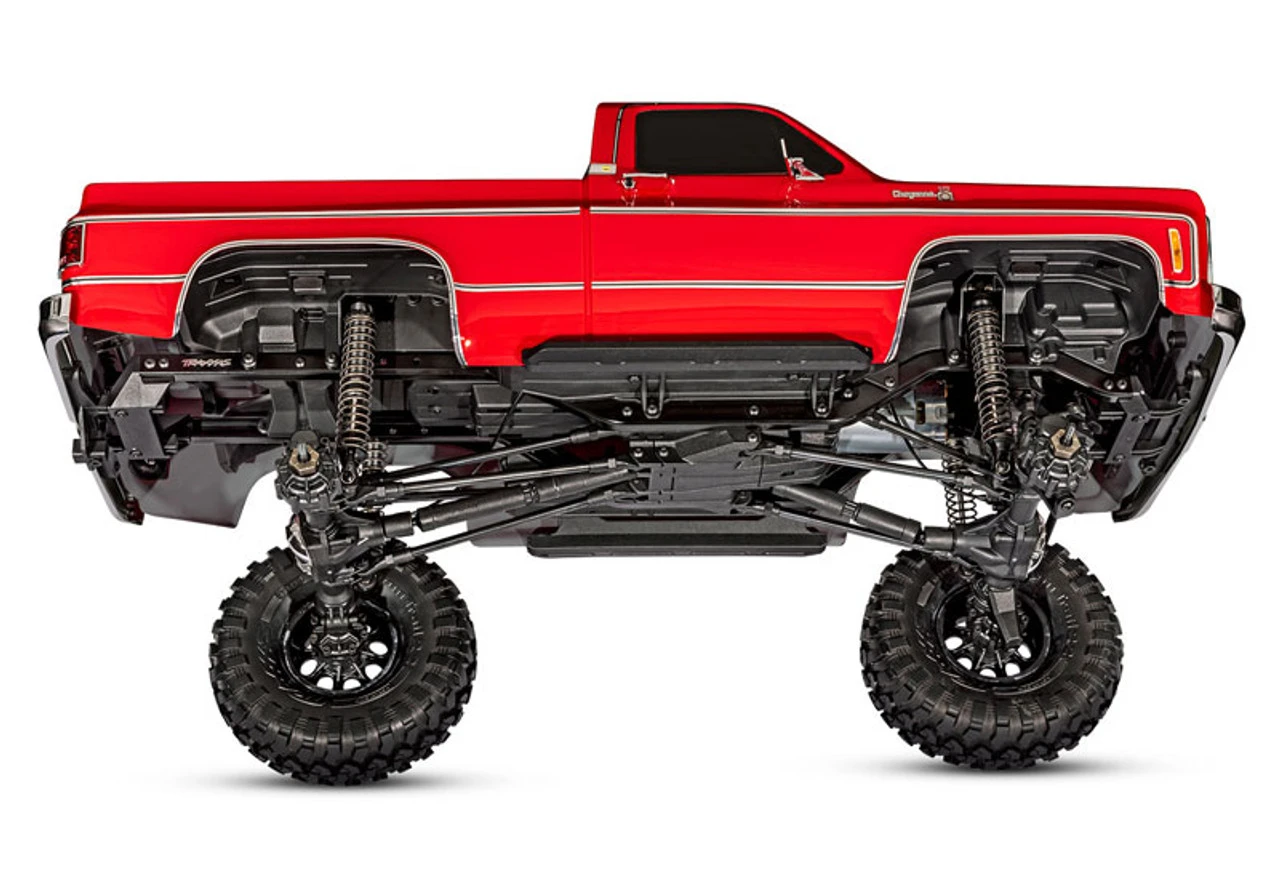

Factory-Installed Long Arm Lift Kit
The Traxxas Long Arm Lift Kit includes extended GTS aluminum shocks, longer links and rod ends, extended driveshafts and T-Lock cables, and a new servo mount. The lift kit works as one coherent system not only to raise the truck, but also to maintain TRX-4’s carefully tuned suspension geometry.

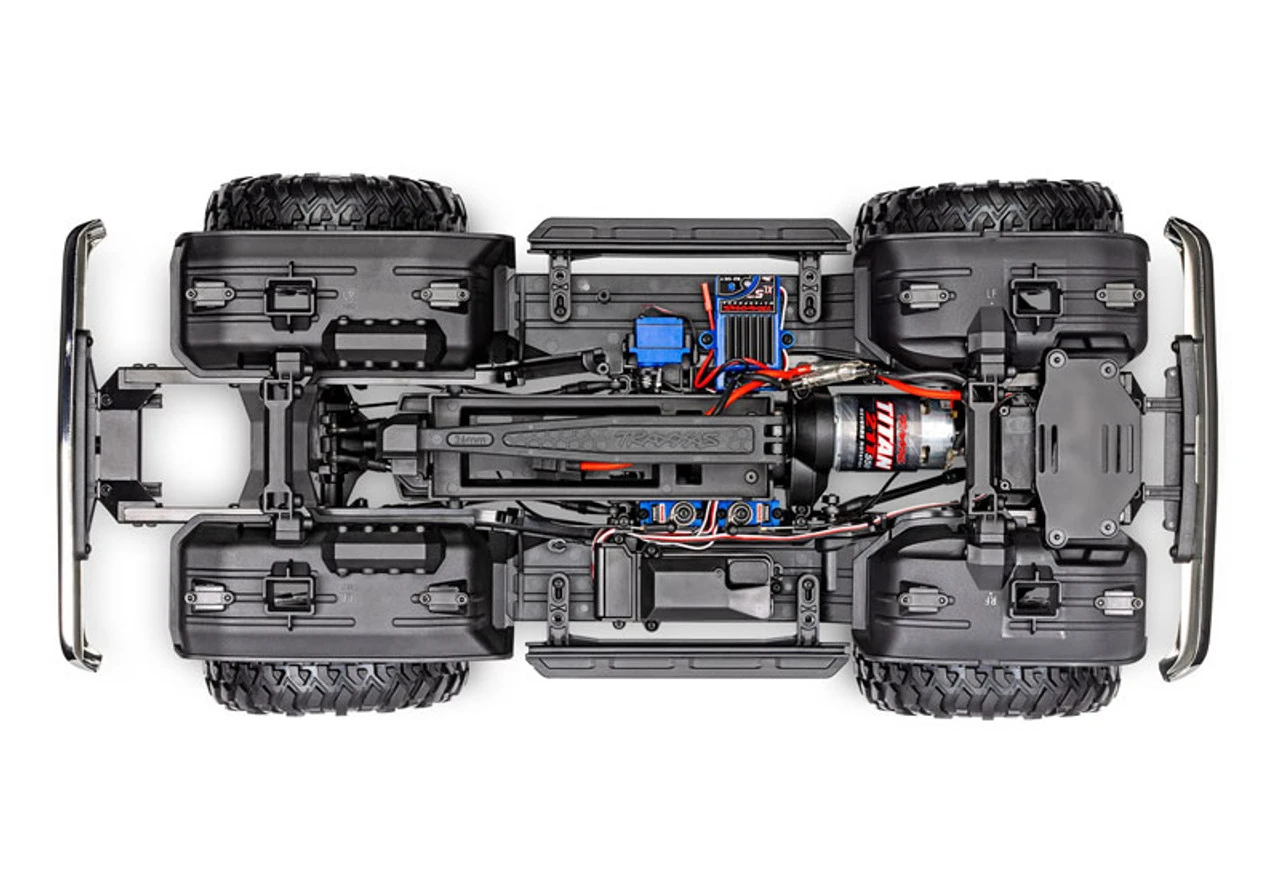

Heavy-Duty Frame Rails
A think 1.5mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. The extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

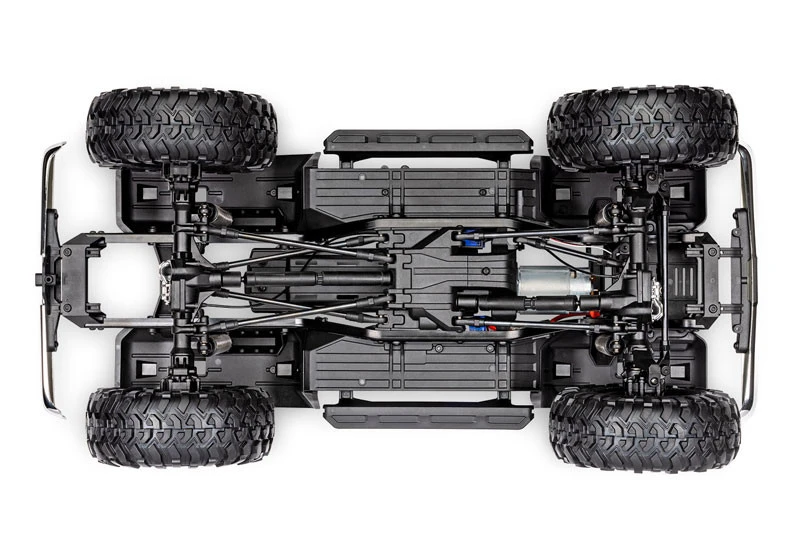

Raised Center Driveshafts and Suspension Links
TRX-4’s radical portal axle design raises the driveshafts higher to improve axle geometry and reduce driveshaft angles. Higher driveshafts and suspension links pass over obstacles to avoid high-centering your truck and reduce overall grinding wear.

Molded Inner Fenders and Floor Pans
Tough inner fenders mount directly to the frame and shock towers to provide substantial look and feel to K10. Molded floor pans integrate into the fenders to keep rocks, mud, and twigs out of the chassis.

2.22” Canyon Trail Tires
K10 High Trail Edition rides on oversize Canyon Trail tires for additional ground clearance and rock-crawling performance. The ultra-soft S1-compound rubber and aggressive lug pattern delivers unmatched grip and rugged climbing action.

Waterproof Metal Gear Servo
A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough challenges.

*Click to See the Full Line of TRX-4 Parts/Accessories

Specifications
Length: 22.20 inches (563mm)
Front Track: 10.60 inches (270mm)
Rear Track: 10.60 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.38lbs (3.35kg)
Height (overall): 10.89 inches (277mm)
Wheelbase: 13.23 inches (336mm)
Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Requires
(4) AA batteries for the transmitter
