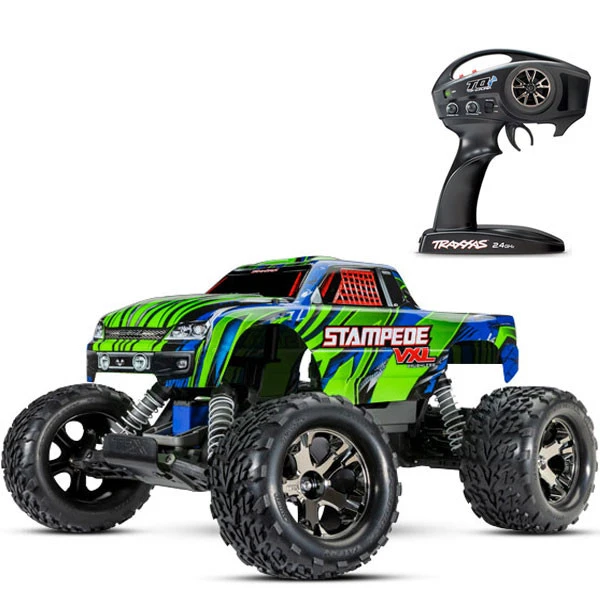

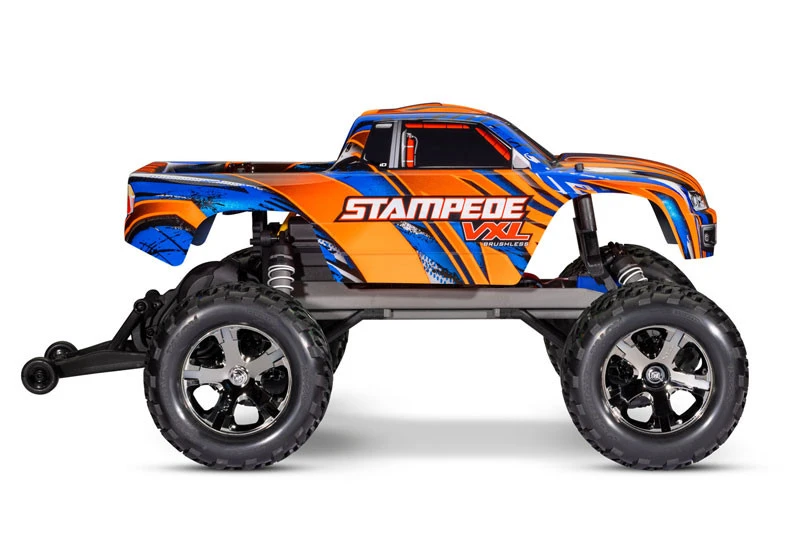

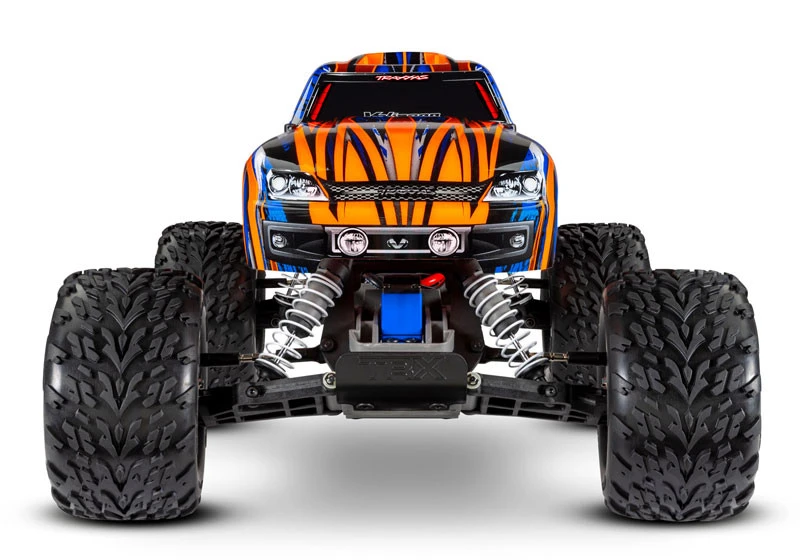

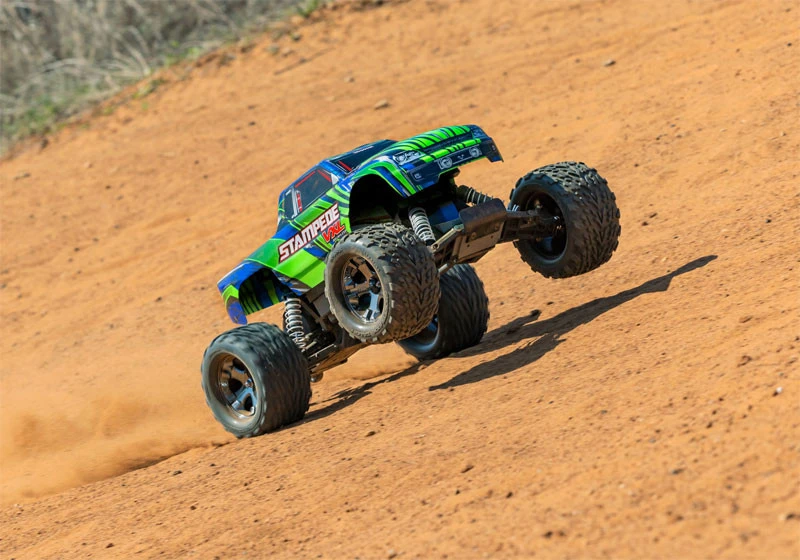

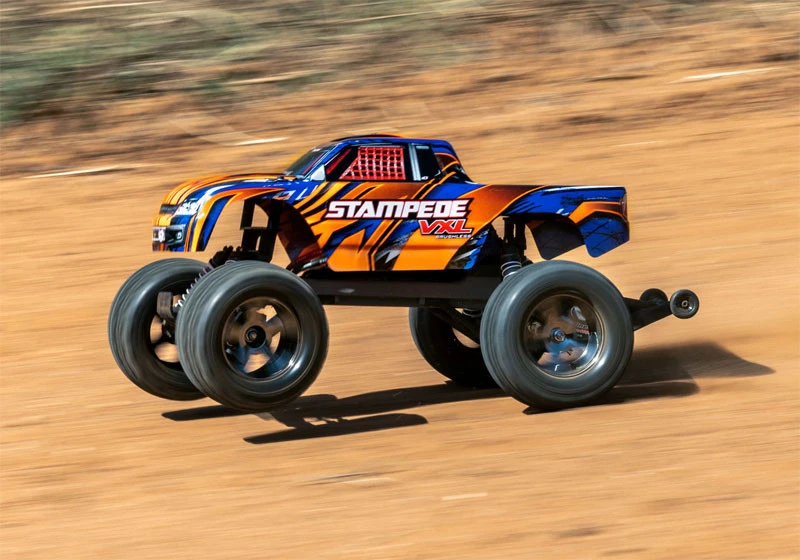

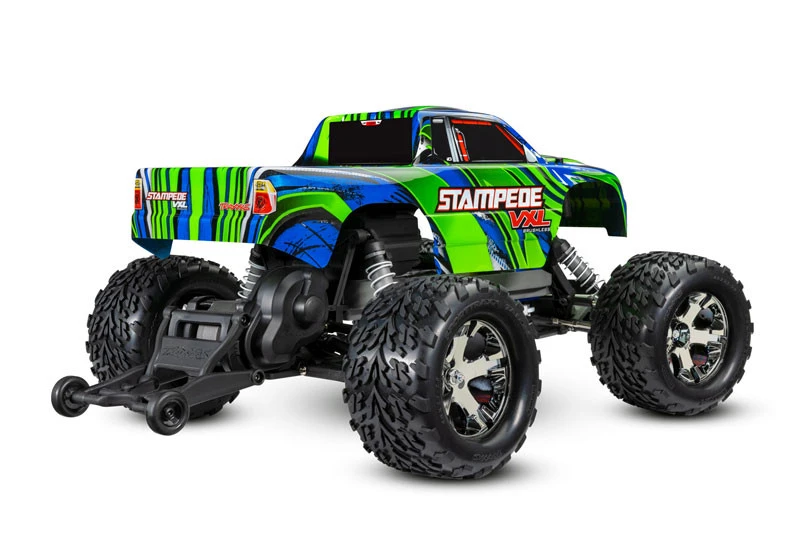

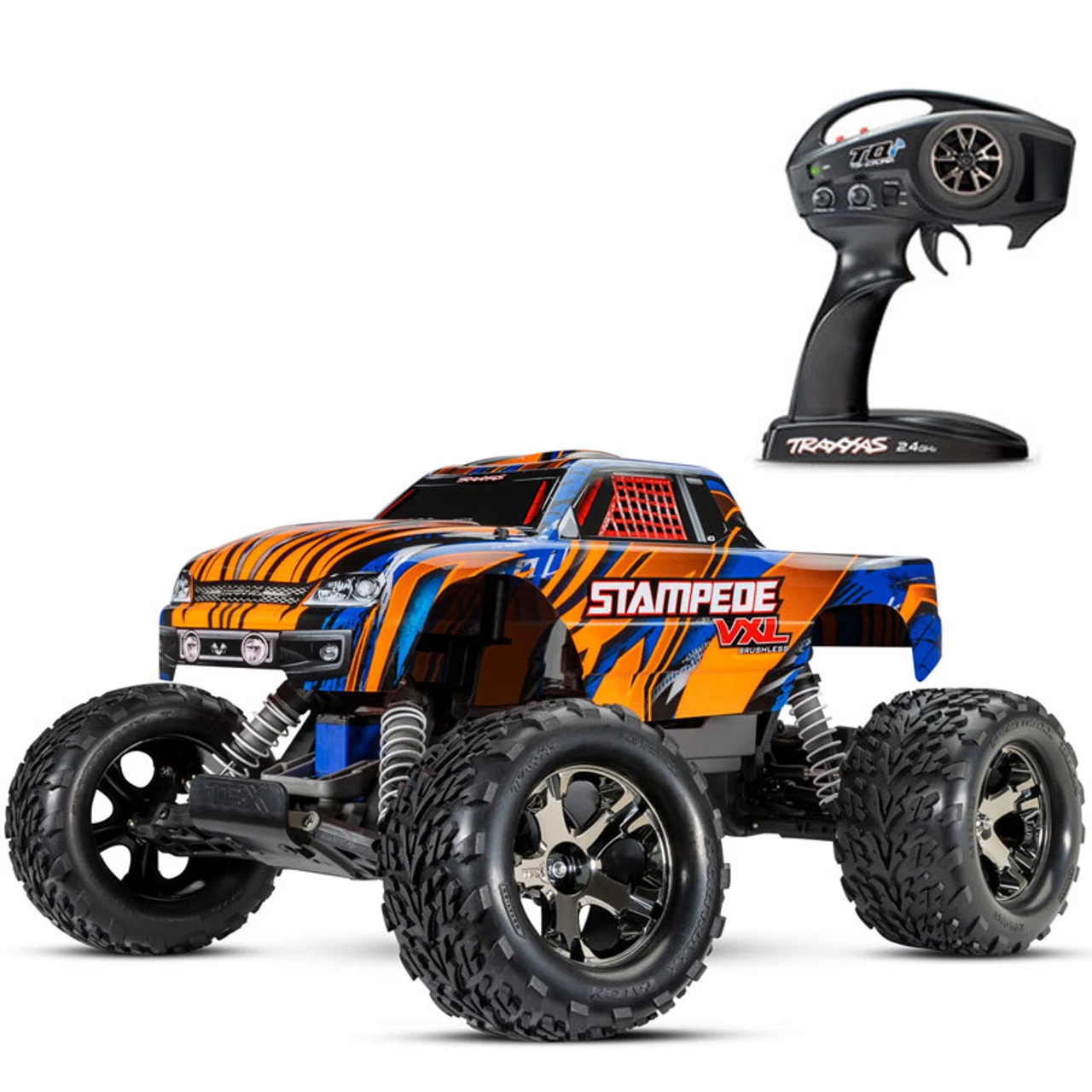

Traxxas Stampede VXL Brushless 2WD RC Truck W/TSM & Pro Series Magnum 272R (no Batt/charger)

This is the Traxxas Stampede VXL Brushless Electric 2WD Ready-to-Race RC Monster Truck with Magnum 272R transmission, Traxxas Stability Management (TSM) and the TQi 2.4GHz Link-Enabled Radio System (Traxxas Bluetooth Link Module Compatible – Module sold separately). Battery & charger sold separately – See recommended battery and charger combos below. The Stampede VXL comes with waterproof electronics, making it great for the streets and off-road.

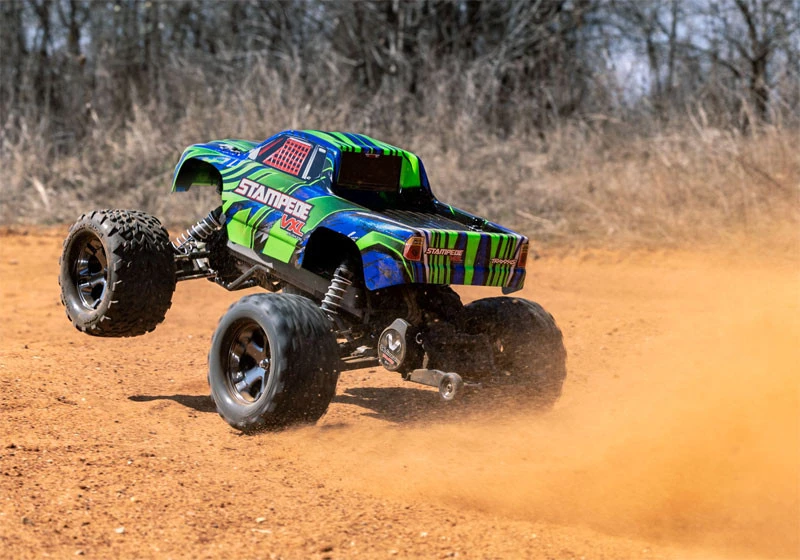

World’s Most Extreme 2WD Monster Truck!

Stampede VXL redefines high-performance for RC monster trucks. Extreme Velineon brushless power muscles the Stampede to speeds of 65 mph and beyond with innovative Traxxas Stability Management (TSM) to make the power more accessible. Experience speed and throttle response like never before with fully waterproof electronics for all-weather fun. Engineered for speed and built Traxxas Tough, the Stampede VXL ushers in a new era of extreme monster truck performance.

Features
Traxxas Stability Management TSM
Powered by the Velineon Brushless Power System
Stampede VXL reaches speeds in excess of 65 mph!*
Waterproof electronics extend brushless power and performance to water, mud, and snow
Velineon VXL-3s Electronic Speed Control
LiPo and NiMH compatible with two-stage low-voltage detection
Sport Mode – forward / brake / reverse
Race Mode – forward / brake
Training Mode – 50% forward / brake / 50% reverse (patented)
Velineon 3500 brushless motor
Consistent high-power output
Low-maintenance design
Efficient, high-speed ball bearings
Precision-balanced rotor
TQi 2.4GHz transmitter
Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
Multi-Function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) (#6533), fail-safe security and integrated telemetry ports
Digital high-torque Traxxas 2075 waterproof steering servo
Durable steel turnbuckles and captured rod ends
High Performance Magnum 272R transmission
All-metal internal gears
Sealed beveled-gear differential
3.2 mm aluminum motor plate
Low-profile case
Sealed gearbox protects the transmission with beefed up motor guard for extra protection
Torque-Control slipper clutch
External gear cover with easy slipper access
Updated heavy-duty telescoping U-joint driveshafts and yokes

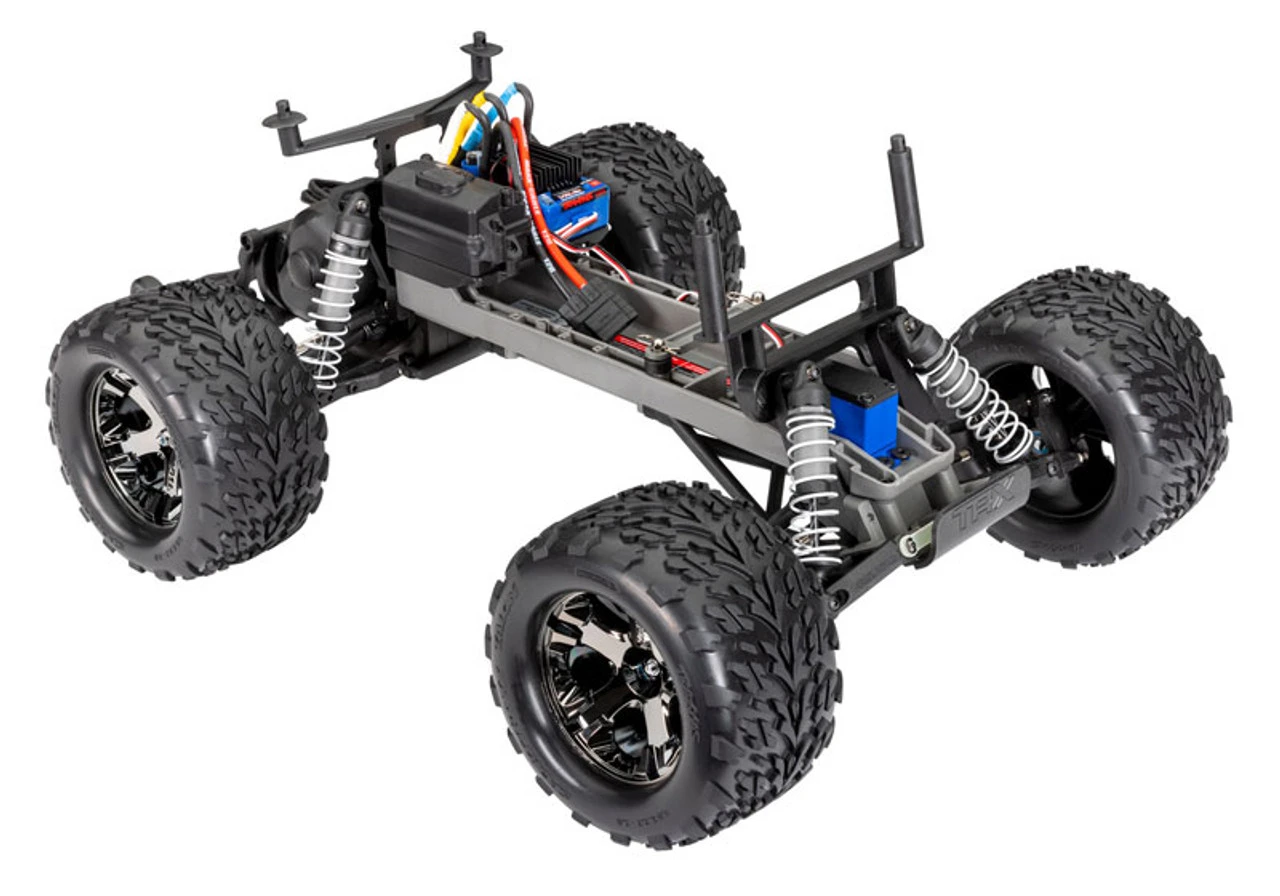

Fiber-composite monocoque chassis
Speed control and receiver are securely fastened to chassis
Easy access battery compartment
Fully adjustable Ultra Shocks™ with X-ring technology
White powder coated shock springs feature a responsive spring rate
Talon all-terrain 2.8″ monster truck are pre-glued on black-chrome All-Star wheels
ProGraphix multi-colored painted body

Traxxas Stability Management
Traxxas Stability Management TSM makes it easier to control your vehicle on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM senses the vehicle’s direction and makes steering corrections to provide straight-ahead full throttle acceleration without loss of control. When cornering, TSM makes intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. TSM also improves braking performance by keeping the front wheels arrow straight until they come to a complete stop.

The World’s Most Advanced Ready-To-Race Radio System
The radio system is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The Traxxas TQi radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance.

Traxxas Link Wireless Module Compatible
The TQi’s most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn mobile device into a powerful tuning tool. The full-color display combines with the free Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

5-channel Micro Receiver with Fail-Safe Security
The TSM TQi 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding. A two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters. In the event of signal loss, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated. The 5-channel receiver features three telemetry ports to allow real-time data to be transmitted from your vehicle to the TQi transmitter.

Patented Sealed Watertight Receiver Box
Stampede VXL’s receiver is fully enclosed to protect it from the elements. The antenna and servo wires route neatly through a special watertight seal and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

Velineon VXL-3s ESC
Innovative waterproof design
Three Programmable
Drive Profiles:
    Sport Mode – Forward / Brake / Reverse
    Race Mode – Forward / Brake
    Training Mode – 50% Forward / Brake / 50% Reverse (patent pending)
Traxxas EZ-Set one-button setup
Large heat sink
Built-in two-stage low-voltage detection for LiPo batteries.
NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon 3500 Brushless Motor
Ultra high-temperature Neodymium magnets
Optimized for power and efficiency in 1/10th scale vehicles
Low-maintenance design
Efficient, high-speed ball bearings
Precision-balanced rotor
10-Turn, 3500kV
Rebuildable
Brilliant blue-anodizing finish

Maxx Cable 12-Gauge Wire
This super-flexible, high-current, low-resistance 12-gauge, wire flows energy in and out of the electronic speed control for maximum performance. The Traxxas Connector combines with Maxx cable to extract all the power your battery can supply.

Heavy-Duty Hub Carriers & Steering Blocks
Stampede VXL features all ball bearing front steering blocks and rear hub carriers. They utilize large 5×11 mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Adjustable Steel Turnbuckles
Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. Stampede VXL is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they simply won’t pop off.

Talon 2.8″ Pre-Glued Tires with Foam Inserts
The advanced Talon tread pattern provides excellent traction and proven durability! The soft compound rubber hooks up for maximum acceleration and great grip on a wide variety of surfaces: dirt, grass, pavement, and rocks.
The black-chrome All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

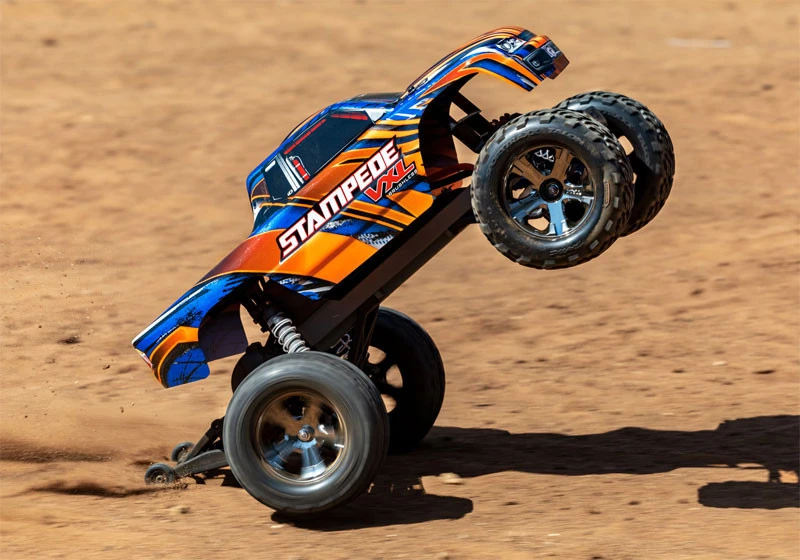

Adjustable Wheelie Bar
Stampede VXL uses a patented wheelie bar when four position adjustments for wheelie control or for wheelies on command. The durable nylon composite mount offers an extra level of protection for the motor and transmission case.

Torque-Control Slipper Clutch
The Torque-Control slipper clutch utilizes special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent yet adjustable traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on. Spur gears can be removed and replaced without altering the slipper adjustment.

Included Optional Pinion Gear
Stampede reaches a scorching 65+mph top speed using an optional 30-tooth pinion gear, 83-tooth spur gear, and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 19-tooth pinion gear is just right for all-around, wheelie popping, on or off-road action.

Precision Transmission Case
Stampede’s Pro Series Magnum 272R transmission is engineered for extreme strength with its rugged, reinforced case. The case halves engage precisely to seal out dirt and debris, and create a rigid structure to support the motor, suspension arms, and optional wheelie bar. The thick 3.2 mm T-6 aluminum motor plate resists flex and acts as a heatsink.

All-Metal Internal Gears
Stampede VXL’s race-ready Magnum 272R transmission is built for massive torque with high-strength steel input, idler, and differential gears and large-diameter bearings. The input gear is keyed and press fit onto the top shaft for greater precision and strength than a pin-mounted gear.

Sealed Beveled-Gear Differential
Stampede VXL’s heavy-duty steel-gear differential is X-ring and gasket-sealed and filled with grease for all-around performance. It’s easy to tune the differential’s locking action by adding different viscosity silicone oil to suit surface traction.

Removable Differential
The Magnum 272R’s easily removable differential makes maintenance and tuning easier than ever. Disconnect the driveshafts and open the hatch to release the differential in just minutes.

Yokes with Telescopic Driveshafts
Stampede VXL’s drive yokes provide maximum durability to withstand the extreme power of the Velineon Brushless Power System. The slider driveshafts are extremely durable and allow greater articulation for increased suspension travel.

Powder Coated White Springs
White springs feature a race-tuned spring rate for more responsive handling and the long-lasting, white powder coated finish sets Stampede VXL apart from the pack.

ProGraphix Body
Stampede VXL’s fully trimmed and painted ProGraphix body comes with pre-applied decals to save you time and get you driving just minutes out of the box. Traxxas’ ProGraphix bodies are the toughest, hottest looking bodies around.

Digital High-Torque Waterproof Steering Servo
A monster truck needs a powerful steering servo for responsive performance. A Traxxas #2075 digital high-torque, ball bearing steering servo comes standard for precise control, quick response, and unmatched torque—all in a waterproof case.

Oil-Filled Ultra Shocks
Stampede’s oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Suspension Tie Bar
The composite tie bar strengthens the front bulkhead and suspension arms for increased durability.

Hex Hardware
Stampede VXL uses pro-quality, high-grade, metric hex-drive hardware for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Rubber-Sealed Ball Bearings
Precision 5×11 mm rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.

Specifications
Length: 16.25 inches (413 mm)
Front Track: 12.75 inches (324 mm)
Rear Track: 12.75 inches (324 mm)
Weight: 65.3 ounces (1.85 kg)
Height (Overall): 9.5″ (241 mm)
Wheelbase: 10.6 inches (270 mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires (Pre-Glued): Talon 2.8″
Rear Tires (Pre-Glued): Talon 2.8″
Front Wheels: 2.8″ Black-Chrome (All-Star)
Rear Wheels: 2.8″ Black-Chrome (All-Star)
Electronic Speed Control: VXL-3s Electronic Speed Control
Motor (Electric): Velineon 3500 Brushless
Gear Ratio (Internal): 2.72 (Final Drive: 12.34)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272
Steering: Single Point
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Radio System (Transmitter) TQi 2.4GHz (2-Channel)
Radio System (Receiver) Traxxas Stability Management (#6533)
Top-Speed: 65+mph**
*Battery Tray Dimensions:164 mm x 46 mm x 26 mm

Requires
(4) AA batteries for transmitter
7-Cell NiMH flat or hump pack battery or a 2S or 3S LiPo battery
Compatible charger for selected battery

Speed
30+mph*    Battery: 2922X (1)   Pinion/Spur: 19-T / 86-T
40+mph*    Battery: 2923X (1)   Pinion/Spur: 25-T / 86-T
40+mph*    Battery: 2843X (1)   Pinion/Spur: 25-T / 86-T
65+mph**  Battery: 2872X (1)   Pinion/Spur: 30-T / 83-T

*With included gearing   **Optional gearing (not included)
