Traxxas Revo 3.3 Nitro 4WD RC Monster Truck W/TSM & Telemetry

This is the Traxxas Revo 3.3 Ready-to-Run Nitro 4-Wheel Drive Radio Controlled Monster Truck with Traxxas Stability Management (TSM), the TQi 2.4GHz Radio System with Bluetooth Wireless Module and Telemetry Sensors included! These are complete with the new high-performance 3.3 engine with a high-performance dual-chamber Resonator polished aluminum tuned pipe, EZ-Start 2 Electric Start System, TQi 2.4GHz transmitter (telemetry sensors included!), servos, receiver, 1200mAh 5-cell receiver battery, 7.2V 6-cell EZ-Start battery, DC charger, extra glow plug, and a fuel filler bottle. All you need is 4 AA batteries and fuel. The new Revo 3.3 is truly Ready-to-Race!

Monster innovation, monster versatility, and supreme size come together in the one truck that could only come from Traxxas. Now more than ever, the new Revo 3.3 defines what it means to be the pinnacle of monster truck performance, the standard bearer for cutting edge innovation and boundless capability that all others are measured against. The new Revo 3.3 is pure monster to its core with its massive presence, meaner gaze, and feature-rich capability. More importantly, Revo’s advanced engineering equips it for fun, and the new Revo 3.3 delivers even more of it!

The World’s Most Advanced Ready-To-Race Radio System Now Connects Wirelessly to the Traxxas Link App
The
Traxxas TQi paired with the Traxxas Link app is the most advanced,
feature-rich, Ready-to-Race radio system available. Now, TQi connects
wirelessly to the latest Traxxas Link app for the ultimate in
ease-of-use and control. The TQi radio system can be equipped with the
Traxxas Link Wireless Module to unlock exciting features such as instant
Bluetooth connectivity; access to the full range of powerful TQi tuning
and telemetry tools through an intuitive high-definition graphical
interface; and the ability to have a friend remotely monitor real-time
telemetry while you focus on mashing the throttle. Your co-driver can
even make adjustments for you, remotely, while you drive. No other radio
system can do that. Just like the speed and performance Traxxas
engineers into the vehicles, the power and capability of TQi and Traxxas
Link expands your fun into all-new territory. Only from Traxxas, The
Fastest Name in Radio Control.

Powerful Traxxas Link Application Available on Google Play and in the App Store
Traxxas
Link App. Gone are the clunky controls and blocky monochrome graphics
of yesterday’s radio systems. This powerful app gives you complete
control over the operation and tuning of your Traxxas radio controlled
model with stunning visuals and absolute precision. Traxxas builds the
world’s fastest Ready-To-Race radio-controlled models. That level of
performance demands precision control. Traxxas Link gives you the tools
for exacting adjustment and superior control while always keeping you
informed on your model’s status and speed.

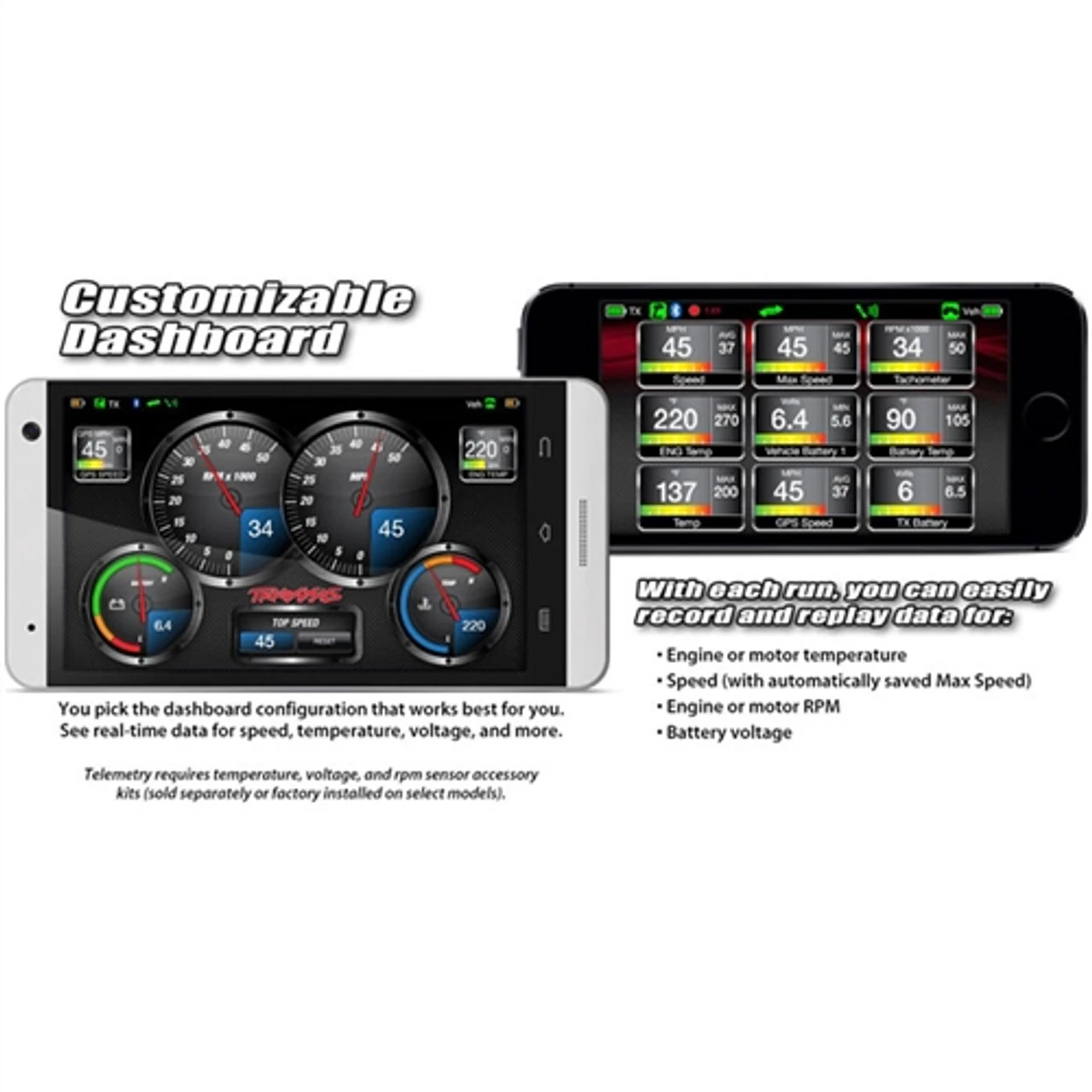

Factory-Installed Telemetry Sensors
Traxxas
Link collects and records real-time telemetry data as you drive. When
you equip your model with optional telemetry sensors, the Traxxas Link
dashboard comes to life showing you speed, battery voltage, RPM, and
temperature. The application automatically detects and recognizes
Traxxas Link sensors for easy setup and configuration. The dashboard is
fully customizable with either dial or digital readout gauges. Up to
nine gauges can be displayed at once. Set threshold warnings and log
maximums, minimums, or averages. Use the recording function to document
your dashboard view, with sound, so that you can keep your eyes on your
driving and not miss a single apex. If you forget to record, simply
touch Instant Replay anytime to capture the previous minute of fun and
unexpected triumphs. The recordings can be named and saved to compare,
review, and share with friends.

Traxxas Stability Management
Traxxas Stability Management (TSM) allows you to experience all the extreme power, speed, and acceleration that was engineered into your Revo making it much easier to control on common slippery surfaces such as dusty asphalt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicles direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain your line, and then allowing you to hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep you arrow straight until you come to a complete stop.

Features

• NEW Traxxas Stability Management!
• NEW TQi 2.4GHz High Output radio system with Traxxas Link Wireless Module
  • TQi 2.4GHz High Output transmitter
  • Traxxas Link Wireless Module
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models – just switch on and drive, “model selection” is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Traxxas Link Wireless Module compatible with Android, iPhone, iPad, iPad mini, and iPod touch (sold separately) for full Traxxas Link application functionality
  • Factory installed speed, RPM, and temperature telemetry sensors
  • TQi 2.4GHz 5-channel micro receiver (#6533) with TSM and integrated telemetry ports

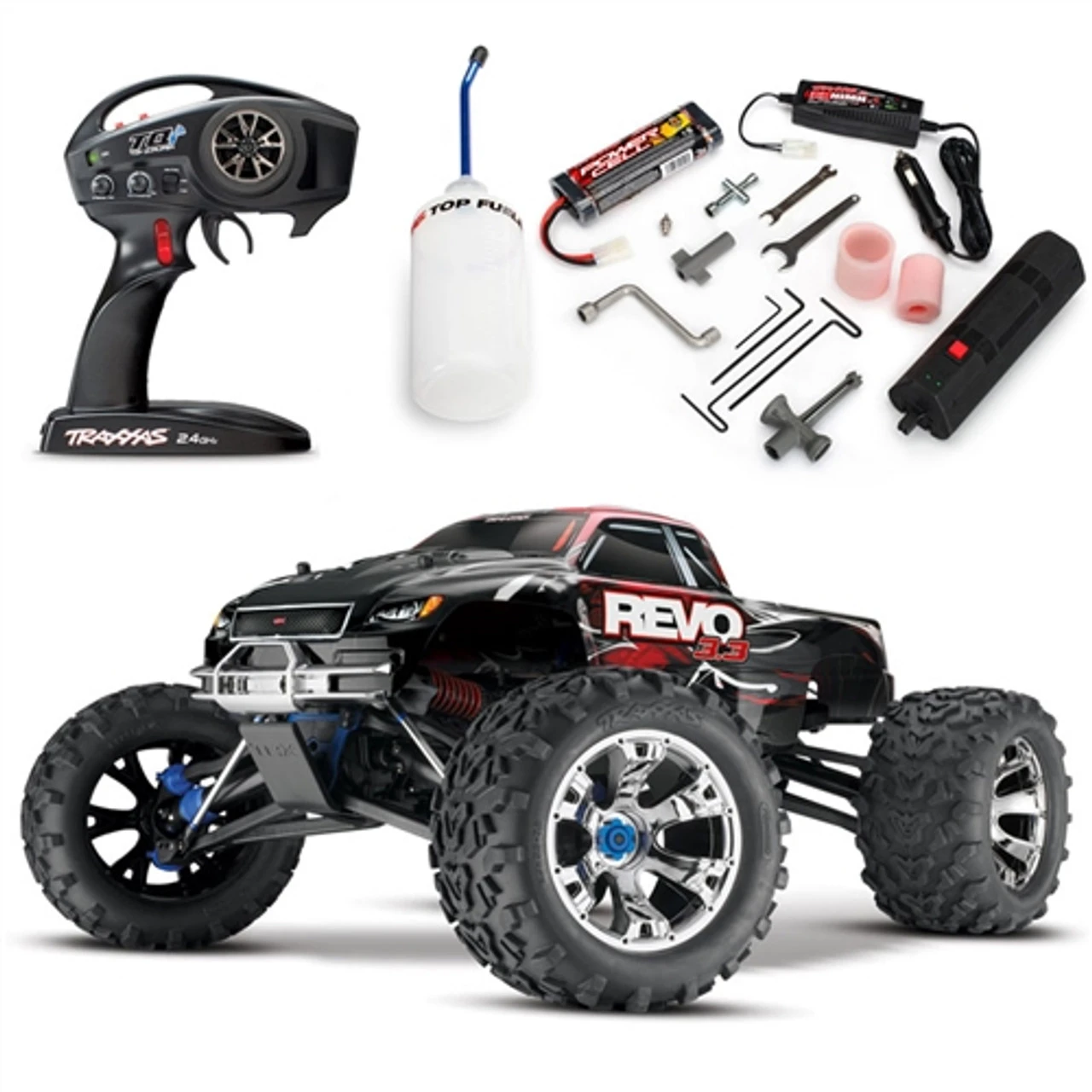

• Included Accessories:
  • 1200mAh 5-cell receiver battery
  • 1500mAh 6-cell EZ-Start pack
  • DC charger
  • Fuel filler bottle
  • Extra glow plug
  • Extra oiled air filter
  • Long travel rockers & springs

• Wide-track body with custom graphics
• 17mm hex Geode mirror-chrome­ wheels with pre-glued on 6.3″ Maxx-Sized Tires
• 17mm aluminum splined wheel hubs and nuts
• Large capacity 150cc fuel tank
• Hard-anodized PTFE-coated GTR shocks with TiN shock shafts
• High flow dual-stage air filter­
• Installed progressive 2 long travel rockers
• Dual 2075 digital high-torque, ball bearing steering servos deliver 250 oz-in & 0.16-sec transit time
• Blue-anodized chassis and chassis brace­
• RX box includes 5-cell flat rechargeable RX pack
• Heavy-duty reversing OptiDrive transmission
  • Two-speed forward/reverse transmission
  • Low rotating mass for quick, high-revving acceleration
  • Constant drive engagement is smooth and instantly responsive
  • Sealed case protects gears & two-speed from damaging debris­

• Large diameter front disc brake­
• Polished Resonator dual chamber tuned pipe
• High-revving TRX 3.3 Racing Engine for proven championship-winning horsepower and speed
  • Bigger piston and sleeve delivers extreme power
  • Consistent and smooth throughout the entire power band
  • Straight-through exhaust flow
  • Slide carburetor
  • Knife-edged connecting rod
  • Large aluminum blue-anodized cooling head
  • Super-light piston and rod
  • High-performance ball bearings
  • Backed by Traxxas Lifetime Engine Replacement Plan.

• 45+mph top speed
• EZ-Start push-button electric starting.
• Torque-Control slipper clutch
• Sealed limited slip front and rear differentials
• Super-duty sealed driveshafts
• Sealed pivot ball suspension
• Rubber-sealed ball bearings
• Hex hardware
• ProGraphix body graphics

The Most Important Feature: Fun
Revo’s specifications are more than just an impressive list of features. They are each specifically engineered and integrated into the model to provide capability and convenience that equates to fun! Revo 3.3’s heavy-duty reversing transmission lets you easily back out of tight spots with the flick of a switch, while the OptiDrive Electronic Transmission Control guarantees safe, smooth engagement every time. Revo engineering makes it the smoothest reversing system available on any nitro truck. The new Traxxas TQi 2.4GHz radio system features the exclusive Traxxas Link wreless Module, a revolutionary concept that harnesses the power of your Android, Apple iPad, iPhone or iPod touch device to create the ultimate pro-caliber radio system. The TQi radio system keeps you in complete control with the latest 2.4GHz technology for no-crystals-required reliability and convenience. Just switch on and drive. ­New Geode chrome wheels with 17mm hex hubs wear massive 6.3″ Maxx-sized tires for big ground clearance and total traction in all conditions. Revo 3.3’s dual-digital servo steering system delivers 250 oz.-in of torque for powerful, responsive handling, plus they’re waterproof for ultimate reliability. The new Revo 3.3 is 100% Ready-To-Drive – even a fuel dispensing bottle and rechargeable NiMH packs for the receiver and EZ-Start system are included, along with the charger, extra air filter, extra glow plug, precision tool set, and more! All the race-engineered advantages that make Revo a seven-time national champion on the track also make it the ultimate platform for all your monster truck fun. Revo durability is second to none, once the long travel rockers are installed, Revo has the most suspension travel of any monster truck.

Once you have created the perfect control settings for your model, you can save them as a profile that you can restore later, use on another model, or share with friends. If the track conditions change, simply re-tune your Drive Effects and save them as new profile. Only Traxxas Link makes pro-level transmitter tuning so fast, convenient, and easy.

Wider, Taller, Stance For Maximum Monster Fun
Revo 3.3 is extra wide with an aggressive, high-riding monster stance thanks to the Geode wheels and massive 6.3″ Maxx-sized tires. The rugged all-terrain treads have wrap-around lugs to give Revo 3.3 trail-shredding traction, and the wheels’ extra offset ensure a sure-footed feel no matter how tough the terrain. Blue-anodized 17mm hex hubs with Traxxas’ exclusive splined design guarantee every powerful stroke of Revo’s class-leading TRX 3.3 engine is channeled directly to the wheels. The Geode wheels’ durable show-chrome finish helps you look your best when you’re at the front of the pack.

­4 AA Batteries and Fuel
That’s all you need to go from the box to the backyard with the Revo 3.3 – 4 AA batteries for the transmitter, and Traxxas Top Fuel Power Plus to pour into the tank. The Revo 3.3 is fully assembled, with pre-glued tires, a mounted and trimmed ProGraphix body and dialed-in electronics. But we didn’t stop there; a high-quality 5-cell NiMH receiver pack AND 6-cell EZ-Start battery are included, and a charger. A 500cc fuel bottle is also included for fast fillups, and there’s even a spare glow plug and air filter element to keep you running strong. A precision metric specialty tool set is also included for easy servicing. Everything you need to experience nitro monster fun the Traxxas way is in the box.

Heavy-Duty Reversing Transmission with OptiDrive
Only Traxxas offers a no-compromise reversing transmission with seamless power delivery, positive engagement, and smooth, responsive acceleration in forward and reverse. The secret is Traxxas’ exclusive OptiDrive Electronic Shift Module, a microprocessor-based controller that senses vehicle speed and optimizes forward and reverse shifting. OptiDrive allows constant drive engagement, so shifts are fast and seamless. The electronic control also prevents accidental shifting at speed; the shift module will only allow the transmission to shift when the Revo 3.3 has slowed to a safe speed. In addition to providing the absolute best performance, the OptiDrive system allows a lighter transmission with fewer moving parts for reduced inertial mass and greater torque handling. That means more monster fun with no penalty for the convenience of reverse.

Dual-Servo Steering With Digital Power and Waterproof Construction
Simply the finest servos in the Traxxas line, Revo 3.3’s dual 2075 steering servos deliver an incredible 250 oz.-in. of torque to keep you in complete control in all conditions, with the handling precision you expect from a seven-time National Champion. Digital circuitry and ball-bearing output shafts give these servos incredibly precise centering, lightning-fast response, and superior power. And they’re waterproof! When not even water can get in, you can be sure dust and dirt don’t stand a chance.

­The TRX 3.3 Racing Engine: Where Power Meets Technology!
The Most Powerful Smallblock Engine Available In Any Ready-To-Run Truck! When it comes to sheer power, high-rpm performance, and reliability run-after-run, no engine can even come close to the award winning TRX 3.3 Racing Engine. This precision-engineered powerplant is the solution that brings it all together with extreme horsepower that is second to no one; easy tuning; full Traxxas reliability and support, including the Lifetime Engine Replacement Plan; and the pure convenience of one-touch, push-button, EZ-Start electric starting.

Push-Button Electric Starting
Only the Traxxas EZ-Start offers the pure convenience of true one-handed operation and complete on-board, push-button electric starting. EZ-Start is the safest and most reliable way to start your engine. The Traxxas EZ-Start lights your glow plug and starts your engine quickly and smoothly at the push of a button. Traxxas’ exclusive Smart Start technology monitors critical starting functions, automatically sensing and diagnosing potential problems for trouble-free engine starting every time! Once you’ve used EZ-Start you’ll wonder how you ever enjoyed a nitro engine without it – and with Revo 3.3’s included EZ-Start battery and charger, everything you need to enjoy electric starting convenience is right in the box.

Specifications

Length: 20.65 Inches (525mm)

Front Track: 17.5 Inches (444.5mm)
Rear Track: 17.6 Inches (447mm)
Weight (no fuel): 10.3lbs (4.69kg)
Center Ground Clearance: 4.25″ (108mm)
Height (overall): 11.024″ (280mm)
Wheelbase: 13.7″ (348mm)
Engine: TRX 3.3 Racing Engine w/ EZ-Start
Top Speed: 45+MPH
Skill Level: 4

Requires

4 AA batteries

Nitro fuel
