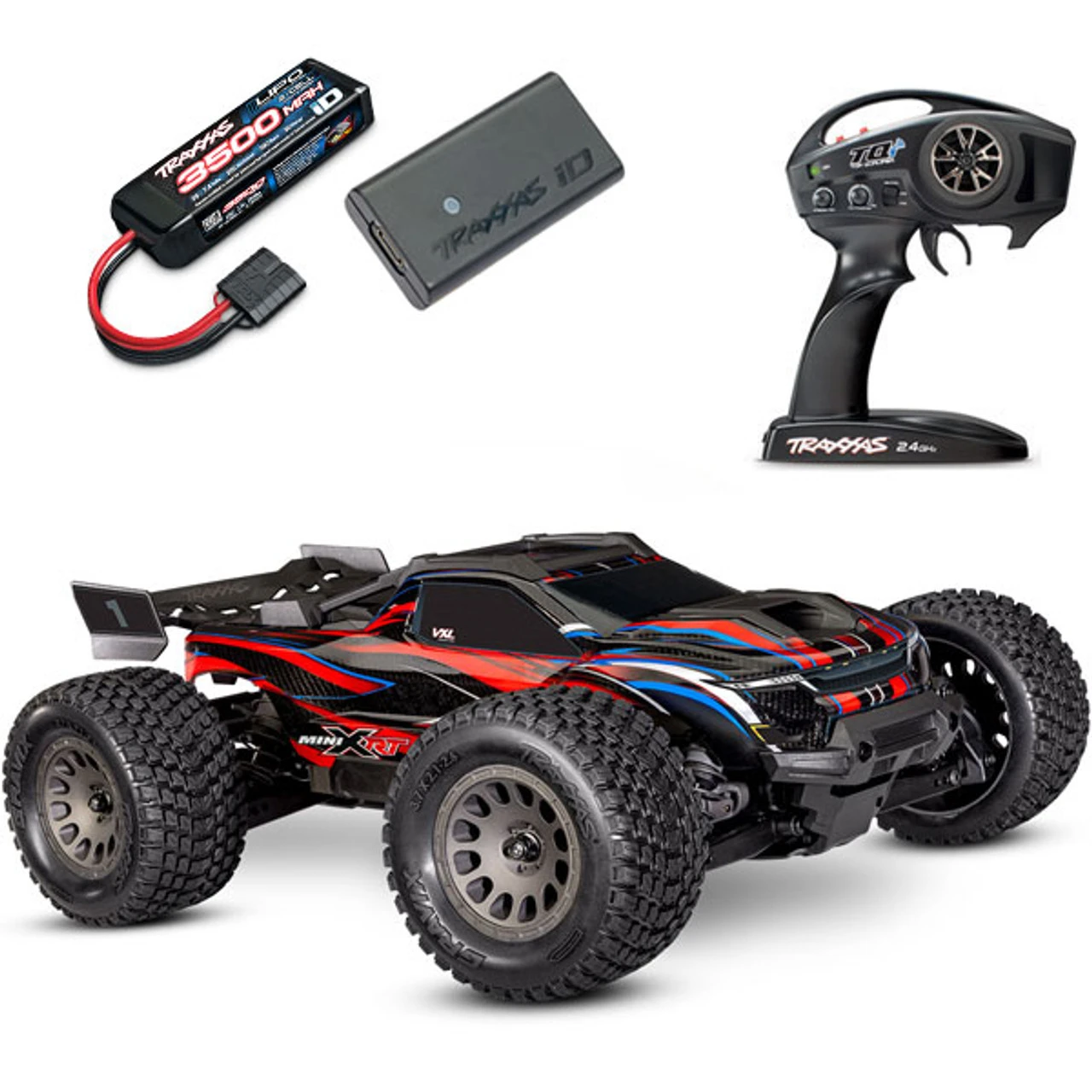

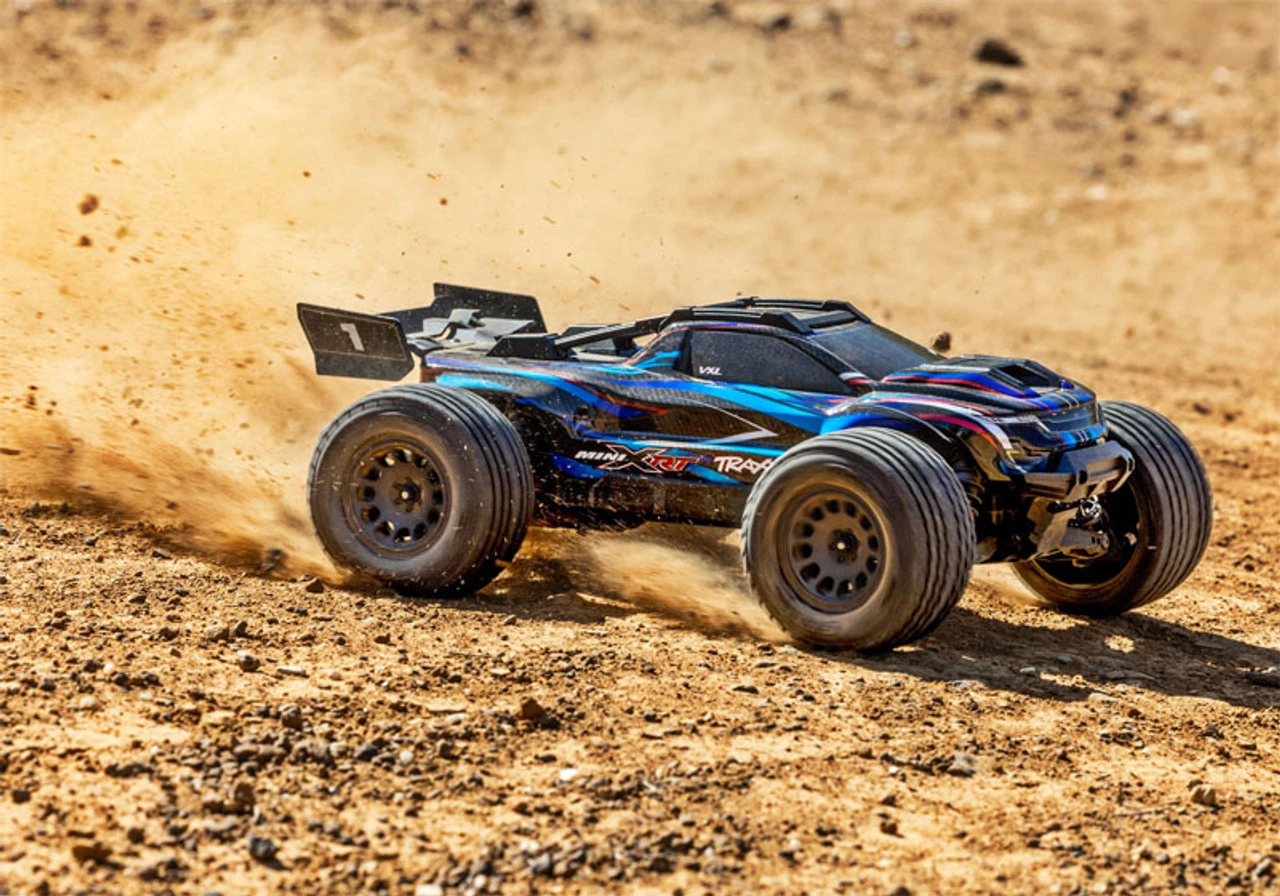

Traxxas Mini XRT 4WD Brushless RTR RC Monster Truck W/ID Lipo Battery & USB-C Charger

This is the Traxxas Mini XRT 4×4 Brushless Ready-To-Race Waterproof Radio Controlled Monster Truck with TQi 2.4 GHz Radio System, Velineon VXL-3s Brushless Power System, 2-cell LiPo Battery, 2-Amp USB-C Charger, and Clipless Painted Body.

MINI XRT – Extreme 3s Performance. Compact Size.
Mini XRT is a true rocket with full 1/10 scale Velineon 3s brushless power in a compact, take-anywhere size. Mini XRT lives up to its name with unprecedented 55+ mph speed and ferocious acceleration, backed by race-inspired engineering and unrivaled toughness. Mini XRT shatters all expectations with big-scale performance and toughness that fits in a backpack.

Bred For Performance
Like its X-series counterpart, Mini XRT was engineered with maximum focus on speed, handling, and performance. A low, ultra-wide stance delivers supreme confidence and control as Mini XRT muscles its way to 55 mph and beyond. It’s a whole new way to experience big-scale fun and toughness in a backpack-friendly size.

Extreme 1/10 Scale Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.

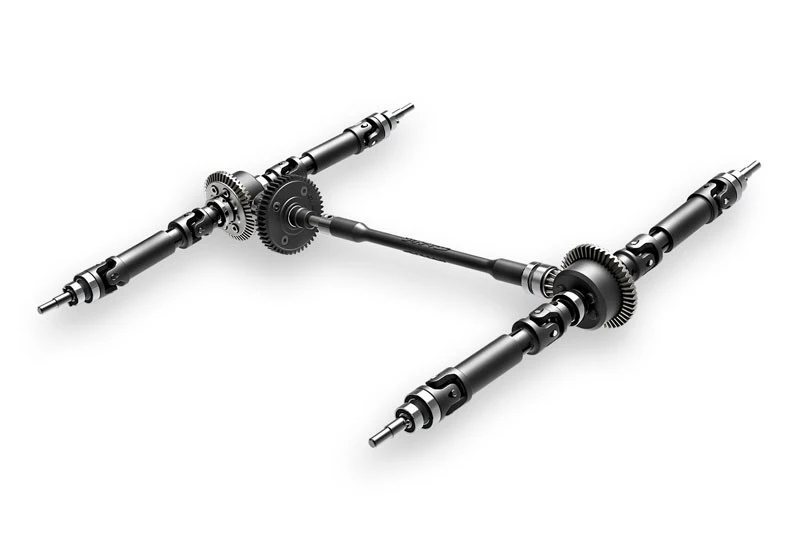

1/10 Scale 4X4 Driveline
Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.

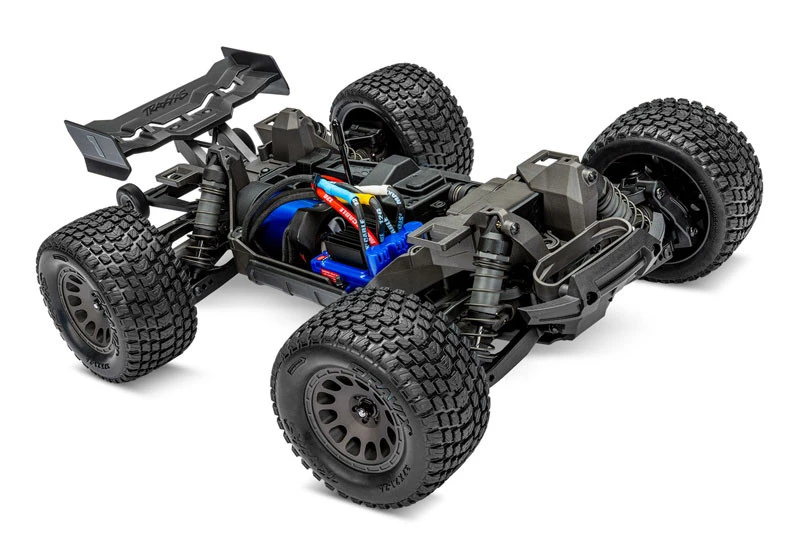

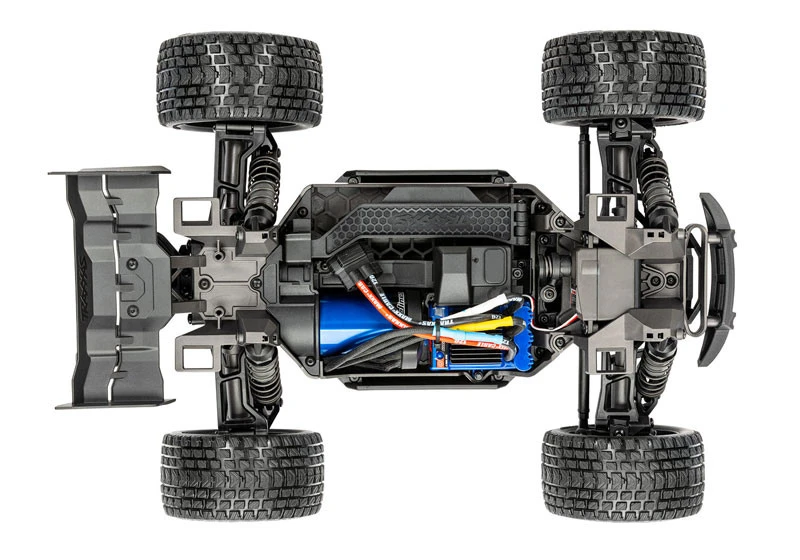

Maxx Chassis Technology
Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.

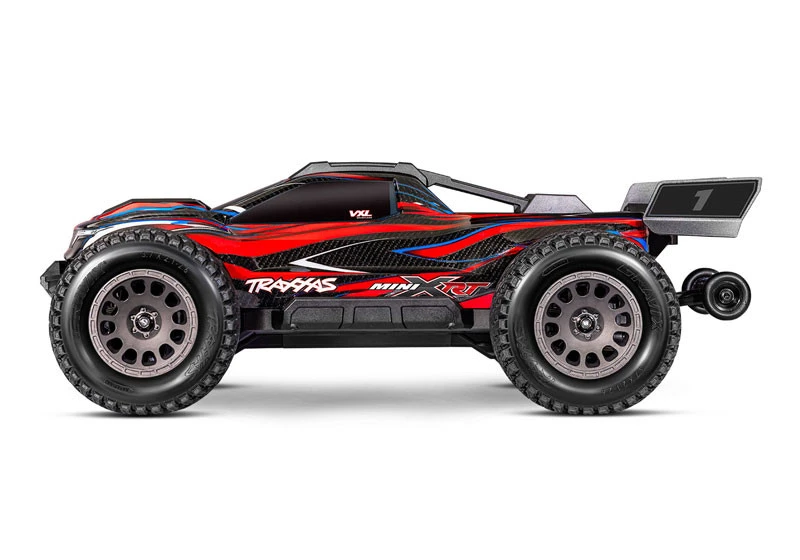

Clipless Body
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

WideMaxx Suspension
Mini XRT relies on proven WideMaxx suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.

Features

• 40+ mph with included 2-cell LiPo Battery (TRA2525X)
• 55+ mph with optional 3-Cell LiPo Battery (sold separately – TRA2824X)
• Clipless Body Mounting System
  • Quick and easy installation and removal
  • Nerf bar channels for side body support
  • Reinforced for extra protection against tearing
  • Functional rear wing
• VXL-3s Waterproof Electronic Speed Control
  • Three programmable drive profiles
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake
    • Training Mode – 50% forward / brake / 50% reverse
  • Heat sink accepts accessory cooling fan (3340)
  • Traxxas EZ-Set one-button setup
  • Built-in two-stage low-voltage detection
• Velineon 3500 Kv Brushless Motor
  • Ultra high-temperature sintered neodymium magnets
  • Low-maintenance design
  • Precision-balanced rotor
  • Efficient high-speed ball bearings
  • 3500 Kv
  • Brilliant blue-anodized finish
• Battery and Charger Included
  • High-capacity 2-cell LiPo battery
    • 7.4 volts
    • 3500 mAh for extended run time
  • 2-amp USB-C charger
  • iD technology for faster, safer charging
• TQi 2.4 GHz High Output 2-Channel Radio System
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug
• Traxxas Stability Management (TSM)
  • Improves straight line acceleration and braking on low-traction surfaces
  • Maintains steering composure to allow throttle-on powerslides
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
• 1/10 Scale 4X4 Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • 1/10 scale extreme-duty telescoping driveshafts
  • Direct-drive (no transmission)
  • Sealed center differential
  • Large 32-pitch gears
  • Sealed planetary steel-gear differentials (F&R)
  • Fixed gear mesh system

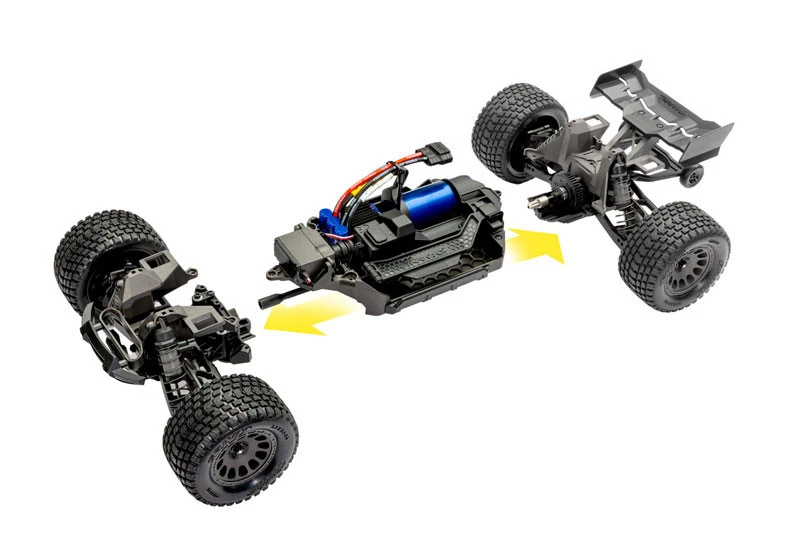

• Modular Composite Chassis
  • Modular chassis with interlocking front and rear bulkheads
  • Driveline is sealed in the chassis to keep out dirt
  • Absorbs and distributes impact energy
  • Easy to service and access components

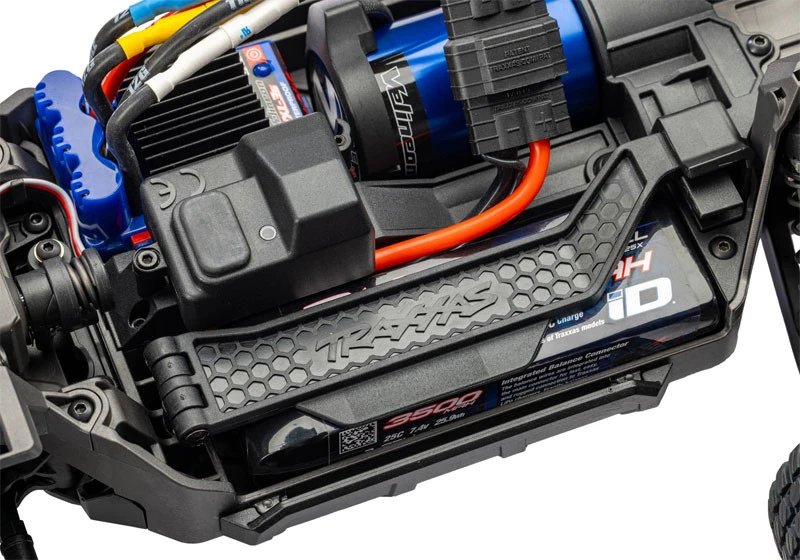

• Easy Battery Access
  • Battery is protected deep in the chassis
  • Battery hold-down pivots for easy access
  • More secure than conventional retention systems
• Steering
  • 1/10 scale 2075X waterproof high-torque, metal-gear servo
  • Heavy-duty double-shear bellcranks
  • Cam-operated servo saver
• Suspension
  • Heavy duty, double-shear suspension arms
  • Dual wishbone design
  • Extra tough outer suspension components
• Oil-Filled Ultra Shocks
  • Full size 1/10 scale shocks
  • Large oil capacity
  • Easy to tune
• Bumpers and Skid Plates
  • Tough energy absorbing front bumper
  • High-angle front skid plate
  • Rugged interlocking skid plates
  • Smooth undertray eliminates snags
  • Integrated nerf bars for side impact resistance
• Wheels and Tires
  • New graphite gray mini XRT wheels
  • Gravix tires with foam inserts
  • Excellent traction on or off the road
  • Directional tread pattern for quieter running
  • Thick center carcass resists ballooning
• Hex Hardware with Rust-Resistant Black Oxide Coating
• Sealed Ball Bearings

Includes LiPo Battery and Charger
Mini XRT includes a 3500 mAh 2-cell LiPo battery for strong punch, long run times, and 40+ mph speed. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD safety and simplicity. Step up to 3s power (battery TRA2824X, sold separately) to unleash 55 mph speed with no gearing change required.

XRT Wheels with Gravix Tires
Gravix tires are an evolutionary hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision. New 2.6” dual-profile graphite gray wheels provide extra clearance for the suspension components and give Mini XRT a tough, menacing appearance.

Wheelie Bar
A wheelie bar is mandatory equipment on a vehicle with the power and speed of Mini XRT. The reinforced wheelie bar protects the wing and body during 100-foot wheelies and also makes a convenient carry handle.

Chassis Nerf Bars
Tough nerf bars protect the chassis from side impacts and provide additional side support to hold the body firmly in place.

Molded Body Reinforcements
Clipless body latches are neatly integrated into Mini XRT’s molded body reinforcements that look great and protect the body. Unlike traditional posts and clips, body reinforcements spread impact forces over a wide area to minimize the risk of pull-through damage.

1/10 Scale Ultra Shocks
Mini XRT uses the same full-size oil-filled Ultra Shocks found on Traxxas’ 1/10 scale monster trucks for truly bottomless suspension travel. The Ultra Shocks’ large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.

Fixed Gear Mesh System
A fixed gear mesh system takes the guesswork out of setting your gear mesh with multiple preset gearing positions. Insert the motor screw through the desired gearing position for a perfect gear mesh every time. The fixed positioning also keeps the gear mesh tight, even after the harshest impacts.

Waterproof Electronics
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.

TQi Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.

Dual Bellcranks with Servo Saver
Mini XRT’s standard-size 2075X metal-gear steering servo uses dual bellcranks for zero bump steer geometry and high-speed steering precision. Oversize components and double-shear connections make Mini XRT unbelievably tough with a cam-style servo saver for added protection against impacts.

32-Pitch Gears
Mini XRT is engineered for Velineon 3s power right from the start with huge 32-pitch pinion and spur gears. Normally found in much larger 4X4 vehicles, 32-pitch gears deliver total reliability no matter how much brushless power you pour on.

1/10 Scale Planetary Differentials
Mini XRT’s differentials are nearly twice the size of standard 1/16 scale differentials for bombproof durability. The sealed design allows you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.

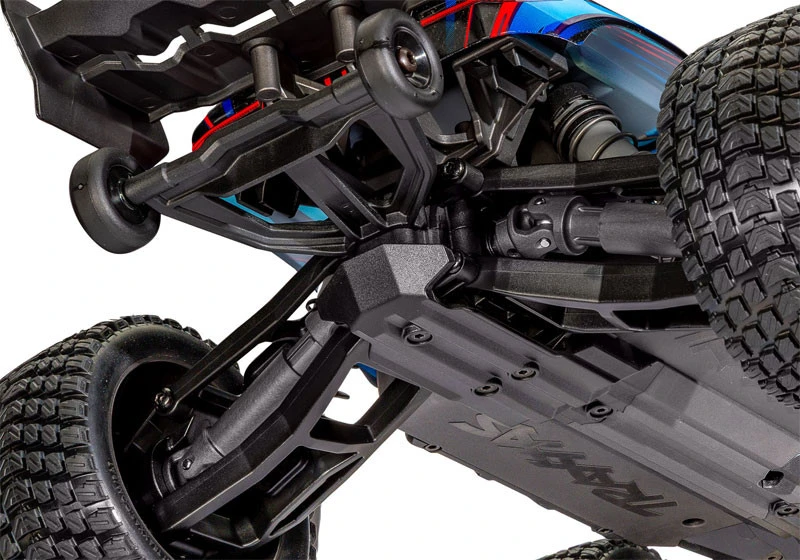

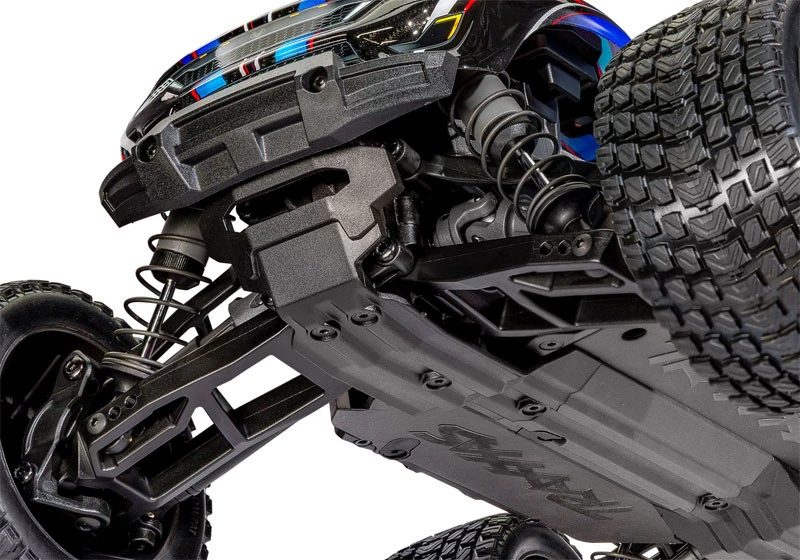

Interlocking Skid Plates
Anything that flies must come down eventually so Mini XRT uses tough skid plates to absorb hard landings and protect the chassis. The interlocking skid plates fit tightly together to form a smooth, snag-free undertray. They’re also quick and easy to replace as wear builds up so there’s no need to hold back.

*Click to See the Full Line of Parts/Accessories

Specifications
Model Type: Monster Truck
Top Speed: 55+
Skill Level: 1
Scale: Maxx
Length: 14.8 inches (376 mm)
Width: 11 inches (279 mm)
Height: 5 inches (127 mm)
Weight: 3.99 pounds (1.81 kg)
Front Track: 11 inches (279 mm)
Rear Track: 11 inches (279 mm)
Wheelbase: 8.66 inches (220 mm)
Ground Clearance: 1.06 inches (27 mm)
Drivetrain: Shaft-driven 4WD
Transmission: Direct drive w/ center differential
Differential Type (F&R): Planetary, steel gear
Overall Drive Ratio: 7.36:1
Gear Pitch: 32
Servo: 2075X metal-gear
Radio System: TQi 2.4 GHz (2-channel) w/ TSM
Battery Compartment Specs: 113 mm L x 41 mm W x 22 mm H
Motor Name: Velineon 3500
Motor Type: Sensorless brushless
Motor Weight: 9.24 ounces (262 g)
Motor Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter: 1.41 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: 3.5 mm bullet
ESC Name: VXL-3s electronic speed control
ESC Type: Brushless
ESC Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight: 3.17 ounces (90 g)
Motor Connectors: 3.5 mm bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 12 gauge Maxx Cable

Requires
(4) AA Batteries for Transmitter
USB-C Charging Cable and Block

*Full charging output requires a 45 watt or greater power supply like the Traxxas TRA2912 and high-quality USB-C cable like the Traxxas TRA2916.
