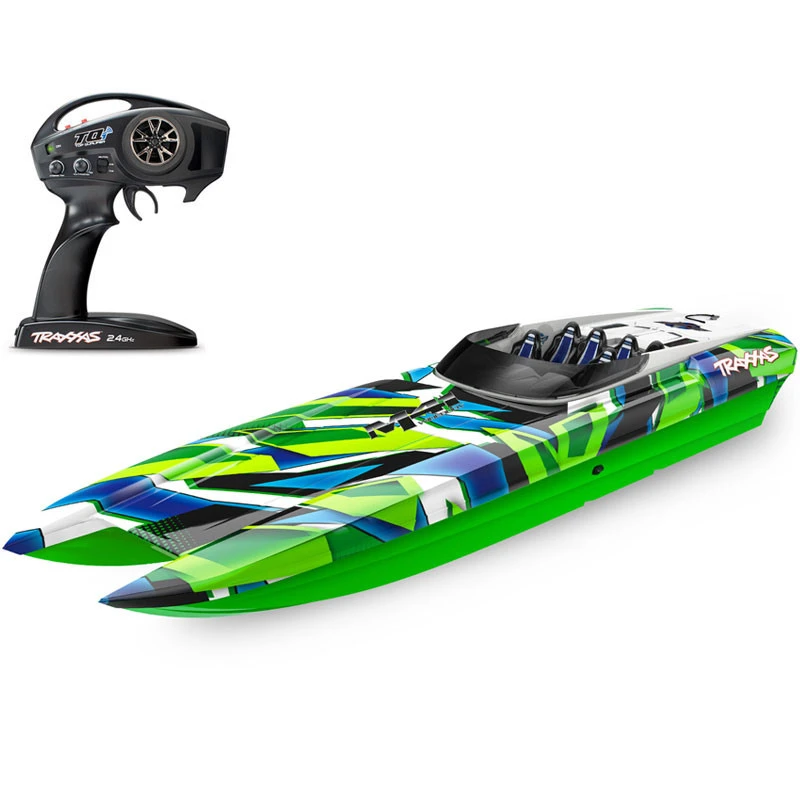

Traxxas DCB M41 40-Inch Brushless Catamaran Ready-to-Race Boat W/TSM

This is the Traxxas DCB M41 40-Inch Ready-to-Race Catamaran Boat with Traxxas Stability Management (TSM) and TQi 2.4GHz Radio System (Traxxas Bluetooth Link Module Compatible – Module sold separately). This boat comes fully assembled, Ready-To-Race, with the Velineon 540XL Brushless Motor, VXL-6s Marine ESC, and factory-applied graphics. The batteries and charger are sold separately for this boat.

Extreme Power and Speed
The DCB M41 Widebody catamaran, designed by DCB (Dave’s Custom Boats) founder Dave Hemmingson, is the largest model offered in the DCB M-Series. With its precision sculpted design and a pair of Mercury Racing 1350 engines, it speeds across the water at 175mph! Traxxas has faithfully captured the incredible looks and performance of the DCB M41 in a detailed scale replica that is versatile, fun, and fast. The catamaran hull has been accurately reproduced to deliver the speed, stability and confidence that the full-size M41 is famous for, allowing you to have fun wherever your marine adventures take you. The M41 replica is equally at home blasting across the waves at the lake on a fun run or exploiting its 50+mph speed on a favorite stretch of smooth water. The razor sharp handling lets you carve turns with authority and precision and yet, offers easy control while cruising by the shore.

Traxxas Stability Management Micro Receiver with Fail-Safe Security
Traxxas Stability Management (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on any water condition. Punch it off the line and TSM goes to work sensing the boat’s direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it! Everything is waterproof and Traxxas-tough as you’d expect. This is performance on a whole new level!

DCB M41 Features

• 50+mph on 6S LiPo! (batteries sold separately)
• 40″ widebody catamaran hull for incredible high-speed performance
• Water-cooled, waterproof VXL-6s Marine speed control
• 6S LiPo compatible with built-in Low-Voltage Detection
• Traxxas High-Current Connectors (patented)
• Velineon 540 XL high-output brushless motor with highflow water-cooling jacket
• Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
• Adjustable battery trays with hook-and-loop straps
• Blue-anodized aluminum rudder support, rudder, and drive strut
• Stainless steel trim tabs and hardware
• Traxxas Stability Management
• TQi 2.4GHz transmitter
  • Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability with Android, Apple iPad, iPhone or iPod touch (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models – just switch on and drive, model selection is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • TQi 2.4GHz 5-channel micro receiver (#6533) with Traxxas Stability Management, fail-safe security and integrated telemetry ports

• Waterproof high-torque steering servo
• Sleek design with factory-applied graphics
• Ready-To-Race
• Traxxas factory support

40″ Widebody Catamaran Hull
Based on the full-size M41 Widebody designed and built by Dave’s Custom Boats, the Traxxas M41 gets its unique, aggressive appearance thanks to its use of a catamaran hull design. Instead of using a monohull with a V-shape design, the catamaran uses two parallel hulls of equal size. This hull design offers more than a different visual presentation; the catamaran offers a wider stance on the water for increased stability and less hydrodynamic resistance. This also lets the M41 use less energy to propel itself across the water making it incredibly fast. The M41 gets on plane almost immediately, letting you get to the fun faster – to the tune of 50+ mph on 6S LiPo power.

Big Boat, Big Fun
The M41 is a water-roosting speed demon that’s also a work of art. At just over 40 inches (1 meter) long, the M41 has a commanding presence just floating in the water. Crack open the throttle and the fun begins! The M41’s size and design give it the versatility to work well in a wide range of conditions. The M41 is stable and easy to control whether blasting across the waves in a big lake, cruising past the shoreline, or testing it’s 50mph top speed on a smooth pond.

Rigid Internal Structure
A unique feature of the M41 is its rigid internal structure with removeable electronics tray and motor mount. The VXL-6s electronic speed control, waterproof receiver box, and powerful 2056 high-torque steering servo are all bolted securely to the tray. The motor is attached independently to a motor mount that increases the rigidity of the hull. In just a few quick minutes, the electronics can be removed for maintenance. The internal structure includes an integrated reinforced transom to provide a solid mounting surface for the control and drive systems. In all the M41 delivers the ruggedness and reliability needed for all-day fun, run after run.

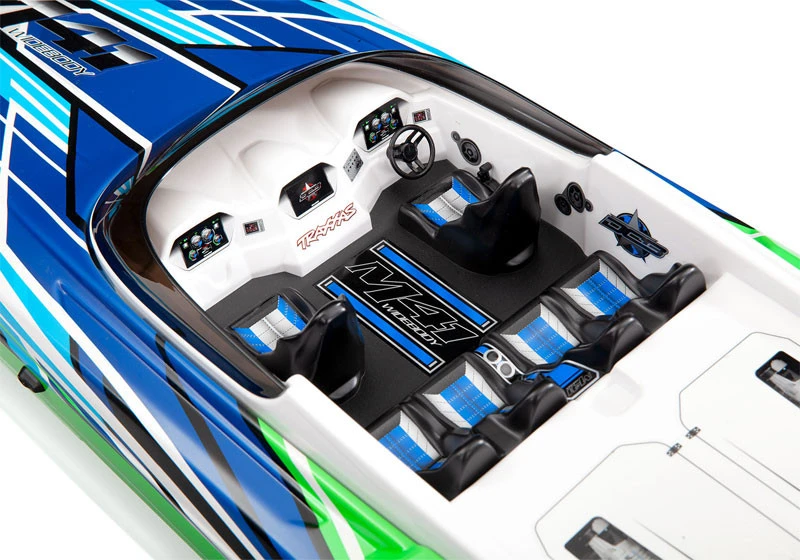

DCB M41 Detailed Cockpit
Traxxas faithfully reproduced the M41’s artfully sculpted cockpit with an acute attention to detail, from the gauges and speakers to the steering wheel and seats. The detailed cockpit flows with the rest of the boat to become a complete work of high-performance art.

Flex Cable Drive System
The M41 features an efficient and reliable flex cable drive system that is securely mounted to the internal structure. This unique installation provides easy access to the various driveline components for quick maintenance or upgrades.

Quick Release Flex Cable
Some boats rely on set screws to pinch the flex shaft in place. Set screws are prone to loosening and can damage the flex shaft – that’s not the Traxxas way. The M41 features a clamping collet that holds the flex cable tightly and centers it perfectly with the motor’s output shaft for the smoothest operation possible. This design eliminates the usual set screws that can strip, come apart, or damage the flex cable. When it’s time for maintenance, the collet releases quickly with a twist of the included precision wrench. Once loosened, the prop and flex cable simply slide out. Reinstallation is just as fast, making it easy to keep your M41 in peak running condition.

High-Performance Prop
The M41 is equipped with a surface-piercing prop that has been optimized to get the hull on plane as quickly as possible without cavitation. The prop is made of a molded composite construction that is lightweight and tough, with no balancing or sharpening needed.

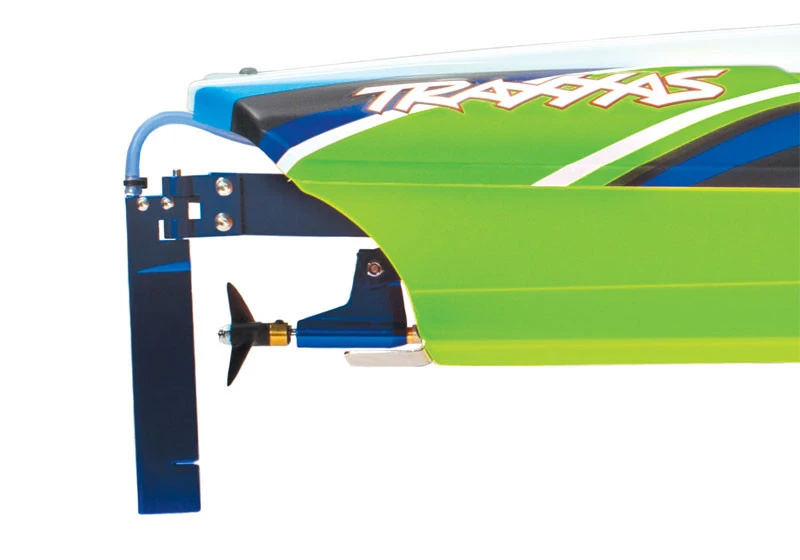

High-Strength Aluminum Hardware
For efficient power transfer and razor-sharp handling, the M41 is equipped with rigid drive hardware and a flex-free transom. These components allow you to experience every ounce of extreme brushless horsepower and performance. The rudder, rudder support, and drive strut are extruded and machined from rugged 6000-series aluminum alloy for maximum strength. The pieces are polished and anodized a vivid blue. The rudder also incorporates a pickup that feeds water through the cooling system.

Stainless-Steel Trim Tabs
The M41’s dual trim tabs further tune its high-speed performance. The trim tabs are precision die-cut and made of bent form stainless steel to resist corrosion. They help keep the M41 stable during high speed runs.

Factory-Applied Graphics
When it comes to first impressions, the M41 makes a big visual statement with its bold graphics. No painting or decaling is required; the graphics are pre-painted so you can get from the box to the water quickly.

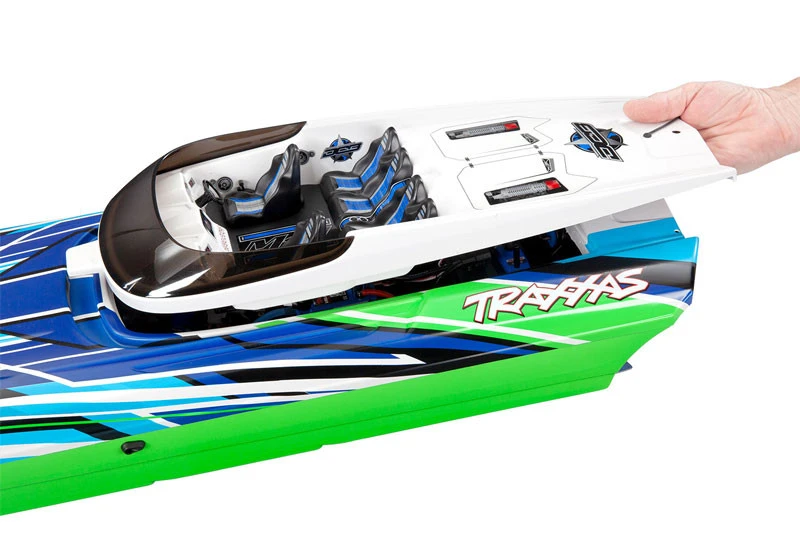

Easy-Access Hatch
The M41’s hatch is secured by a single body clip and removes in seconds for fast and easy access to the hull interior. No sealing tape is required, and a specially designed drip rail in the hull channels away any water that washes over the hatch.

Body-Clip Lanyard
A flexible rubber lanyard keeps the body clip secured to the hatch so it’s always at the ready. It’s just one of the many small details that makes a day at the pond with M41 fun and easy.

Virtually Unsinkable
The foundation of the M41’s extreme performance is its all new hull. An accurately rendered replica, the precision engineered DCB M41 hull is fast and stable. Built in foam flotation makes it virtually unsinkable.

Stainlees Steel Hex Hardware
M41 uses corrosion-resistant stainless-steel and nickel-plated hardware throughout for good looks, easy maintenance, and lasting performance.

Waterproof Electronics
Waterproof electronics are a must in the marine environment. Traxxas electronics are fully waterproof (not just water resistant). The speed control, servo, and receiver all feature rugged waterproofing protection for dependable operation you can count on. It’s an innovation you’ll find only in Traxxas vehicles.

High-Torque Waterproof Servo
M41 demands a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. O-ring seals make the servo completely waterproof, and there’s steering muscle to spare with 80 oz-in of torque at your command. That’s twice the power of typical “standard” servos.

Sealed Watertight Receiver Box
Traxxas’ innovative, ground-breaking waterproof receiver box routes the antenna and servo wires neatly through a special watertight seal (patent pending). To protect the receiver, a custom shaped blue O-ring seals the receiver box. Thanks to the unique design, the receiver can be removed for service and even aftermarket receivers can be used, without losing the sealing properties of the box.

Velineon VXL-6s Marine Brushless System
Extreme Velineon brushless horsepower delivers the muscle you want with the reliability you expect from Traxxas. The VXL-6s Marine electronic speed control is built for true 6S LiPo power.* On-board low voltage detection helps you maintain your batteries. The extra voltage and current maximizes the potential of the Velineon 540XL motor for extreme 50+mph speed. The rebuildable, sensorless Velineon 540XL motor is designed for high-rpm performance and reliability with ultra high-temperature sintered Neodymium magnets, a precision-balanced rotor, and efficient, high-speed ball bearings. Cooling water is routed through the innovative speed control case and then into a unique sealed motor jacket that allows cooling water to flow directly against the motor for maximum possible heat transfer. The M41 keeps its cool, run after run, for trouble-free all-day fun.

The World’s Most Advanced Ready-To-Race Radio System
Traxxas models deserve the world’s most advanced Ready-To-Race radio system. The radio system after all is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas TQi radio system arrives with a full compliment of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It’s so advanced; it doesn’t even need an external antenna. However, the most important new feature may already be in your pocket. The TQi can be equipped with an optional Traxxas Link Wireless Module (#6511, sold separately) that turns your Android device, iPad iPhone or iPod touch into a powerful tuning tool for your Traxxas model. The full-color display combines with the Traxxas Link App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control.

Traxxas Link Wireless Module Compatible
The TQi’s most important new feature may already be in your pocket. The TQi can be equipped with a Traxxas Link Wireless Module #6511 (sold separately) that turns your Android, iPad, iPhone, or iPod touch (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link App (on Google Play and the App Store) to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model.

Specifications

Hull Type: Vacu-formed ABS, Catamaran, shoebox style
Hull Length: 39.5″, 1003mm
Overall Length: 40.6″, 1030mm
Beam: 10.5″, 266.9mm
Height: 5.95″, 151.05mm
Deadrise & Transom: 14.5 degrees
Weight: 5.42 lbs (without batteries)

Speed Control Type: Traxxas Velineon VXL-6s, Water-cooled
Input Voltage: (22.2 Volts DC max) – 2x 7-cell NiMH, 2x 2S LiPo, or 2x 3S LiPo
BEC Voltage: 6.0 VDC
BEC Current: 3A
Thermal Protection: Thermal shutdown
Low Voltage Detection: Yes (user enabled)
Motor (electric): Traxxas Velineon 540XL Brushless, water-cooled
Drive System: Direct Drive, 0.150″ Flex Cable
Outdrive: Adjustable Aluminum
Prop: 2-blade composite, 42x59mm

Transmitter: TQi 2.4GHz
Receiver: 6533 2.4GHz TSM 5-channel
Servo: 2056 High-torque waterproof

Requires:

4 AA batteries for transmitter
2x 7-cell NiMH, 2S LiPo, or 3S LiPo batteries
Compatible charger for chosen batteries

*50 MPH top speed when using 2x 3S LiPo batteries
