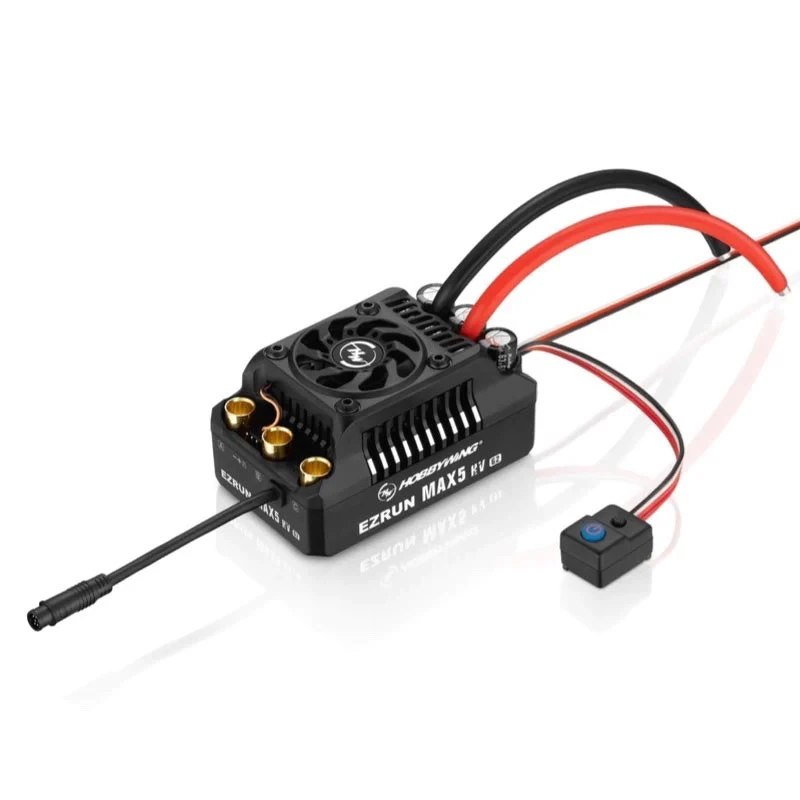

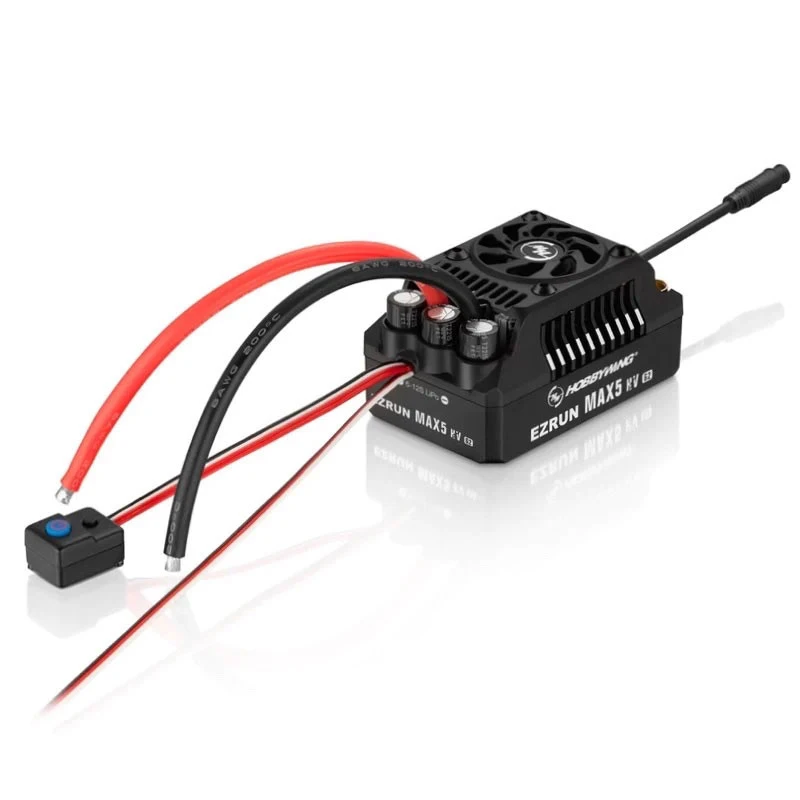

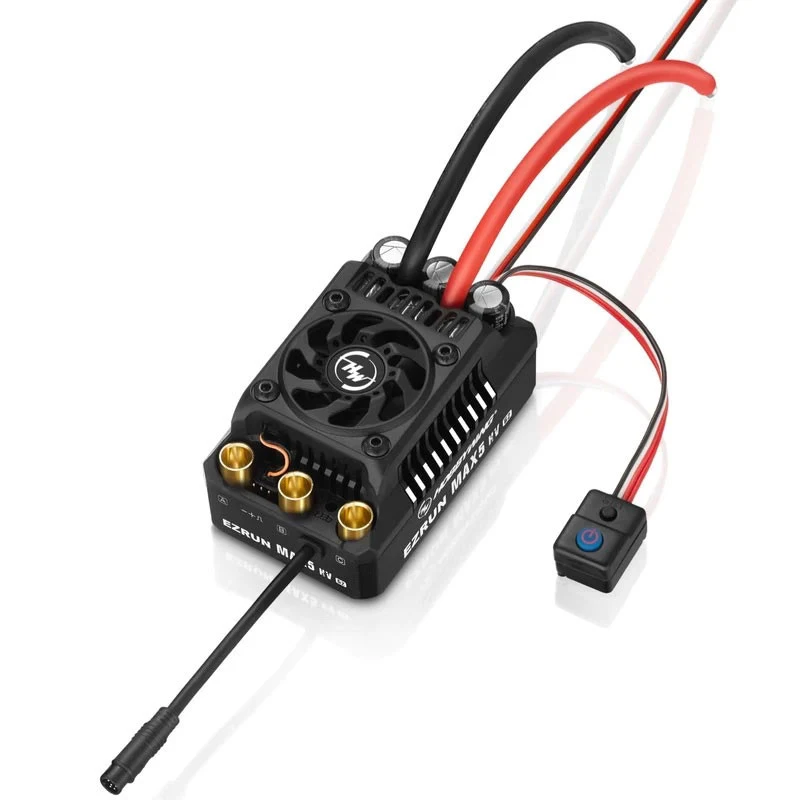

Hobbywing EZRUN MAX5 G2 ESC Sensored Brushless ESC: 6S-12S

This is the Hobbywing Ezrun MAX5 G2 ESC Sensored Brushless ESC: 6S-12S

Features

• The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice and snow, water accumulation.
• Built-in ultra-powerful switch mode BEC with a continuous current of 8A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Supports turbo timing setting, the timing response is remarkable when used with the matching motor(such as EZRUN 56118SD G2 Sensored brushless motor).
• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
• Supports LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
• Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
• Supports the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions

Enhanced Performance
The Max5 HV ESC is designed to work in full-sensored mode at all times when it is paired with a Hobbywing EZRun 56118 G2 Motor. The ESC supports up to 12S LiPo with a maximum output current of up to 250A. The strong, explosive, and stable output power, together with an excellent low-speed linearit, ensures the ESC meets various application requirements such as: vilent start-up, straight-line high-speed, flying slopes, low-speed walking, etc.

Intelligent Freewheeling Technology
The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. With the addition of super-high power design, the operating temperature is drastically lowered to improve overall stability and reliabilityof the ESC.

High-Level Protection
The IP-67 waterproof rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow, and water without damaging the power unit.

1/5th Scale Power
The ESC is able to support up to 24 degrees of Turbo Timing adjustment. There is an approximate 18% increase in performance and is recommended to pair with the new Hobbywing EZRun 56118SD G2 motors to get the best performance.

Powerful BEC
The ESC has a built-in super BEC with a maximum output current of up to 25A. The output voltages are switchable between 6V/7.4V/8.4V. This ensures the ESC is able to support the demanding high-torque servos in the market.

Built-In Anti-Spark Design
The ESC has a a built-in anti-spark circuit to protect the battery plug from being damamged while using a higher voltage battery.

Perfect Combination
Achieve the perfect compatibility when used together with an EZRun 56118 SD G2 motor. Avoid damaing the motor from overheating with the software protection function.

Record And Store Data
Connect theESC to the OTA Bluetooth module and through the mobile phone app, you are able to view real-time data and operating status such as: throttle, voltage, current, temerature, speed, etc.

New Sensor Wire Interface
The new sensor wire interface enhances the ESC protection level and solves waterproof problems faces by traditional interfaces.

Key Features

• Innovative Waterproof Design
• Built-In Ultra-Powerful Switch Mode BEC
• Supports Turbo Timing Setting
• Multiple Protection Functions
• Supports LED Program Card

Specifications
BEC Voltage: Adjustable
Input Voltage: 6-12S LiPo
Product Height: 2.003937″ (51 mm)
Product Weight: 15.11 oz (428.5g)
BEC Continous Current: 8A
Maximum Burst Current: 1600A
Maximum Continuous Current: 250A
Motor Type: Brushless Sensored
Product Width: 2.299213″ (58 mm)
Product Length: 3.720472″ (94 mm)

Includes
(1) EZRUN MAX5 G2 Sensored Brushless ESC
