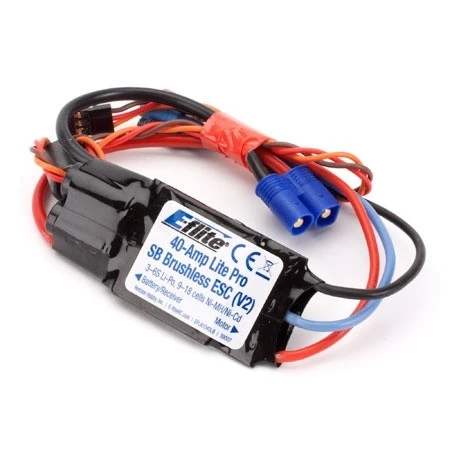

E-Flite 40-Amp Lite Pro Switch-Mode BEC Brushless ESC (V2)

The E-Flite 40-Amp Lite Pro V2 Brushless ESC with Switch-Mode BEC, and advanced programming, allows you to operate up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage.

This is the new E-Flite 40-Amp Brushless Lite Pro V2 Brushless ESC with Switch-Mode BEC.  For up to 40 amps of continuous current with proper airflow, the E-flite 40-Amp Lite Pro V2 brushless ESC delivers. It drives up to 7 analog or 6 digital servos with the BEC on any recommended input voltage. This brushless ESC includes programmable motor braking, soft start for helis and planes, timing, throttle input range and low voltage cutoff. It also features auto motor shutdown in case of lost signal or interference. The safe power-arm mode prevents accidental starts.  All the great features of E-flite’s popular 40-Amp Pro Brushless ESC, in a lighter weight package perfect for use in large-size park flyers and mid-size models where space and weight are more critical.  It can also operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Key Features:

Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)Stronger BEC for support of most 3-axis stabilization systemsDrive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltageProgrammable motor brakingSafe power-arm mode prevents accidental startsProgrammable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltageProgrammable throttle input range (1.1ms-1.9ms or 1.2ms-1.8ms)Programmable soft start for helis and airplanesAuto motor shut down if signal is lost or there is interferenceProgrammable timing – 5 user-selectable ranges, use with a large variety of brushless motors

Specifications:
Continuous Maximum Current: 40A (Proper cooling and airflow required)
Input Connector Types: 13 AWG with E-flite EC3 Connector
Output Connector Types: 16 AWG with 3.5mm Gold Bullet Connectors
Length: 66.0mm (2.60 in)
Width: 31.0mm (1.20 in)
Height: 12.0mm (0.47 in)
Weight: 48.0 g (1.70 oz)
Cells w/BEC: 3-6S Li-Po or 9-18 Ni-MH/Ni-Cd
