Castle Creations Talon 90 ESC W/BEC

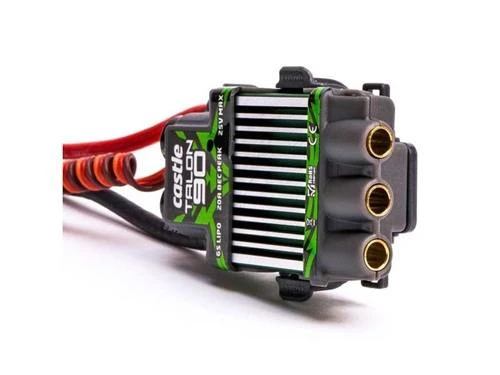

This is the Castle Creations Talon 90 electronic speed control. Castles Talon 90 ESC sports a BEC designed for todays servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

Features:

• Ideal for extreme 500 and 550 class helis and sport (6S) 600 setups,
  also fixed wing aerobats up to 10 lbs (4.5 kg) and scale
  ships up to 20 lbs (9.07 kg)
• BEC offers 20 amps peak power and 9 amps of continuous power
• Castle Creations, Inc. warrants this product to be free from
  manufacturing defects for a period of one year from date of purchase.

Talon 90 is ideal for helicopters drawing 2,000 watts on 6S lipo power. Its a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups. Of course, Talon offers Castle’s industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!

The Talon 90 is also perfect for fixed-wing aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.

Includes: Talon 90 25.2V 90A ESC with 10AWG Battery Wires, Receiver Connector,
three 5.5mm Male Bullet Motor Connectors, and Instructions

Requires: Connector to match selected battery

Specifications:

Input Voltage: 3-6S LiPo
Max Continuous Amperage at Full Throttle: 90A (rating determined with
5mph airflow across the ESC)
BEC Voltage: User selectable 6 or 8V
BEC Output: 20 amp peak, 9 amp continuous
Dimensions: 1.7 x 3.14 x 0.7″ (43 x 80 x 18mm)
mounting bracket adds 2mm depth and 8mm width
Weight: 3.0oz (84.5g) with 5.9″ (150mm) power wires and no battery
connectors

*RC HOBBY APPLICATION RATING: 15 amps for
the duration of a single 1,500 mAh battery pack with the ESC in contact with a 5
mph airflow of 25C (77F) or cooler air and minimal BEC load. Controller
temperature must never exceed 100C (212F). Exceeding current or temperature
ratings may damage components and may shorten the life of the ESC. Always verify
system current draw at full-throttle. Decrease load or increase airflow to
decrease the ESCs operating temperature.

**Peak indicates amperage sustainable for
0.5 seconds – long enough for most servos current draw transients. Always
confirm servo current draw before the first flight of the model.
