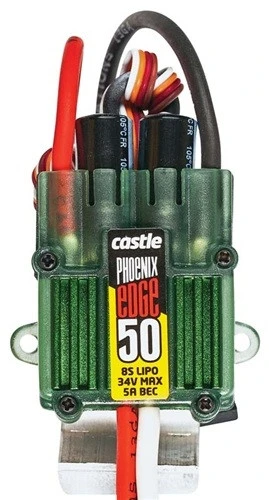

Castle Creations Phoenix Edge 50 Amp ESC W/BEC

This is the Castle Creations Phoenix Edge 50-Amp 34-Volt Electronic Speed Control with 5-amp BEC. The Phoenix Edge 50 is intended for use in 450-class helicopters and fixed wing aircraft from .25-.35 size. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter (free with included coupon).

Features:

• Ideal for 450 class helis and .25-.35 fixed wing aircraft
• Programmable using Castle Link USB Adapter (free adapter with included coupon)
• User programmable white auxiliary wire can be used for governor gain input adjustments, serve as an audible beacon after a crash, act as an RPM output for 3 axis gyros that support RPM sensors, and used as an ESC or receiver arming lock
• One year limited warranty through Castle Creations beginning at date of purchase

With the debut of the Phoenix Edge series of ESCs, the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an unexpected landing, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.

Includes: Phoenix Edge 50 Amp 34V ESC with Instruction Sheet

Requires: Battery and motor connectors of modeler’s choice

Specifications

Input Voltage: 2S-8S LiPo
Max Continuous Amps at Full Throttle: 50A
BEC Output: 5-amp peak**
Dimensions: 1.7 x 2.1 x 0.8″ (43.4 x 53.5 x 21.4mm)
Weight: 2.5oz (70.8g) with wires, 1.6oz (45.3g) without wires
