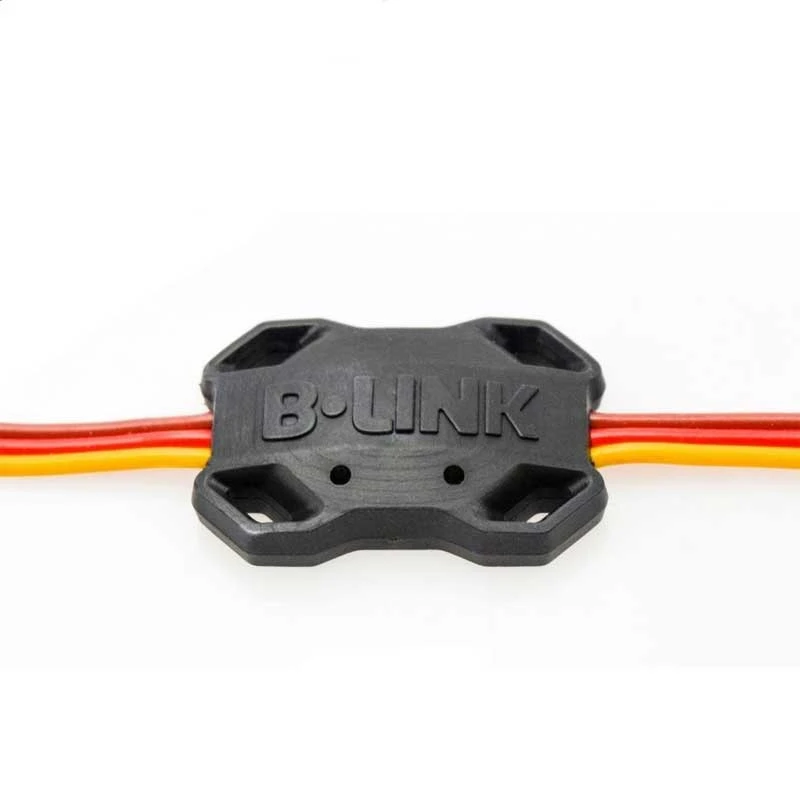

Castle Creations B-LINK Bluetooth Adapter

This is the Castle Creations B-LINK Bluetooth Adapter.

Control at your fingertips!
Castle Link ESC tuning is an essential component for customizing vehicle performance for many Castle Creations’ customers. While the controllers are plug and play, optimizing a Castle ESC through the Castle Link Programming Suite unlocks the full range of capabilities that set Castle apart from the competition. Users enjoy the ability to adjust many variables to enhance their experience including throttle, braking curve, drag brake, reverse type and more. The Castle B-LINK Bluetooth Adapter enables users to wirelessly program settings on current Castle Creations ESCs, many older models and the BEC 2.0/BEC Pro on Apple iOS devices and now Android devices!

Features

• WIRELESS BLUETOOTH COMMUNICATION allows you to interface with most Castle Link compatible ESCs and accessories to change parameters and update firmware.

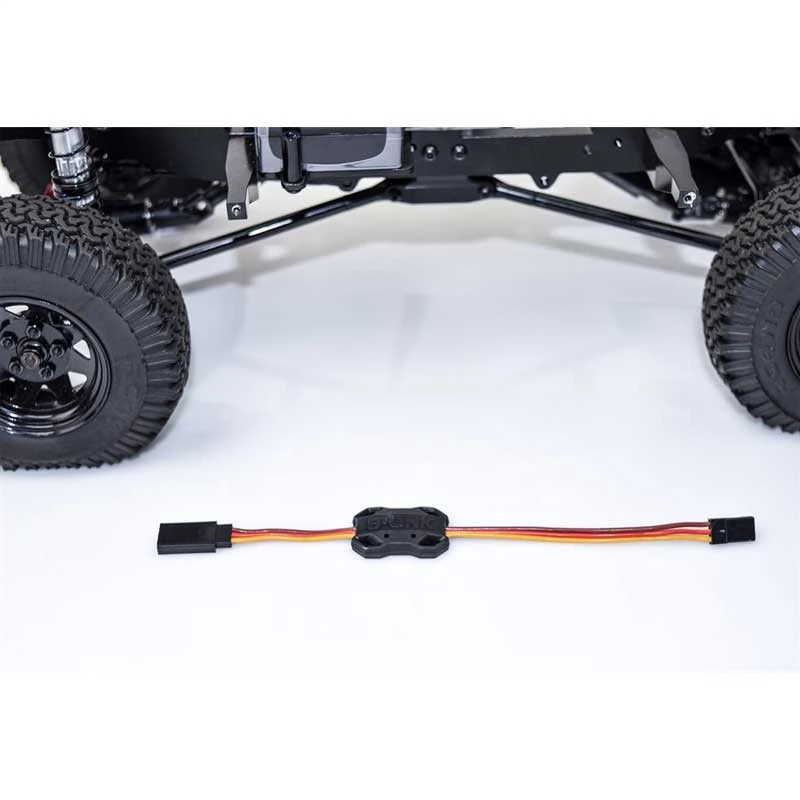

• COMPACT AND LIGHTWEIGHT at 1.20″ x .81″ x .25″ (30.48mm x 20.55mm x 6.55mm) and 0.23oz (6.62g), it can be installed in the vehicle or airframe without significantly increasing model weight.
• CONVENIENT WATERPROOF DESIGN allows you to quickly adjust settings in the field without disconnecting or disassembling the model. It can stay installed in the model or be easily swapped between models.
• FREE APP DOWNLOAD is readily available in the Apple App Store and Google Play. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data.
• EASY TO USE application can be used with multiple B-Link Bluetooth Adapters or can store model information and allow you to use one adapter on multiple models.
• PASSCODE PROTECTED with (user-selectable) 4-digit code to prevent unwanted tampering with your settings.
• SYNC information between multiple devices by creating a free account (requires internet connection to sync database).

Specifications

Input Voltage: Minimum: 4.5V, Maximum: 13V
Max Continuous Current: 10A
Maximum Burst Current: 20A
Dimensions (with wires): 7.25″ x 0.81″ x 0.27″ (184.15mm x 20.55mm x 0.27″mm)
Dimensions (w/o wires): 1.20″ x 0.81″ x 0.27″ (30.48mm x 20.55mm x 0.27″mm)
Weight: 6.62gm / 0.015lbs
Needed for Operation: Castle Link App found at Apple App Store or Google Play and compatible ESC and/or Accessory
Tech Notes: Not compatible with Castle Telemetry Link for Spektrum XBus and Futaba S.Bus2

Requires

Apple devices require iOS version 10.0 or higher.
Android devices require version 5.0 or higher.

PLEASE NOTE: Firmware updates are not yet supported on Android and will be released as an update to the Castle Link App in the near future.

The free Castle Link app for iOS is available on the Apple App Store for use with iPhones and iPads, and Google Play for Android devices. Once downloaded, it does not require a data connection and can be used anywhere, including remote areas.
